A10XL

Price inquiry: onlinesales@ligpower.com

- Excl. carbon tube
Color：
  • Grey
  • Orange
Quantity：

0.00

Free Shipping by DHL/UPS Express

  • Detail information
  • Specifications
  • Download

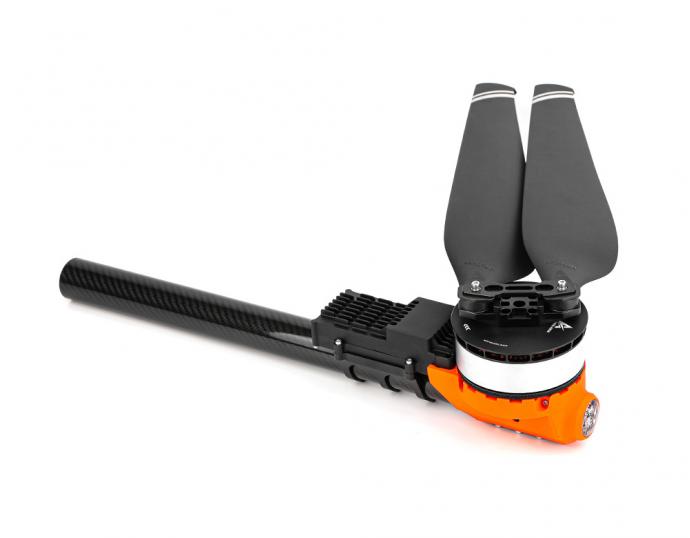

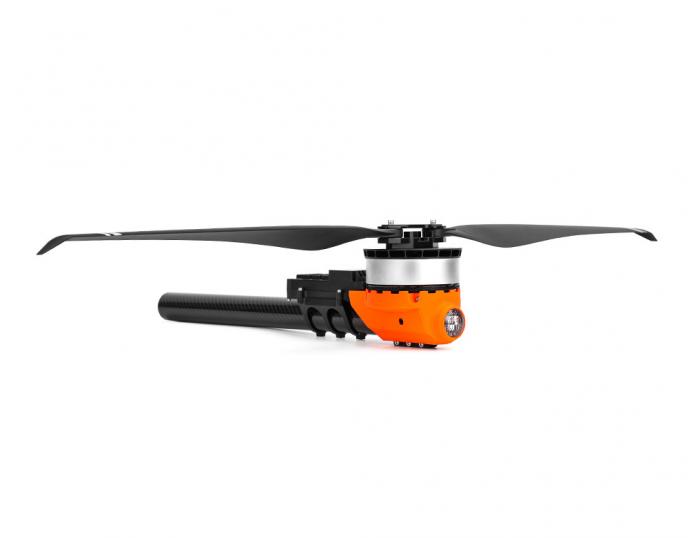

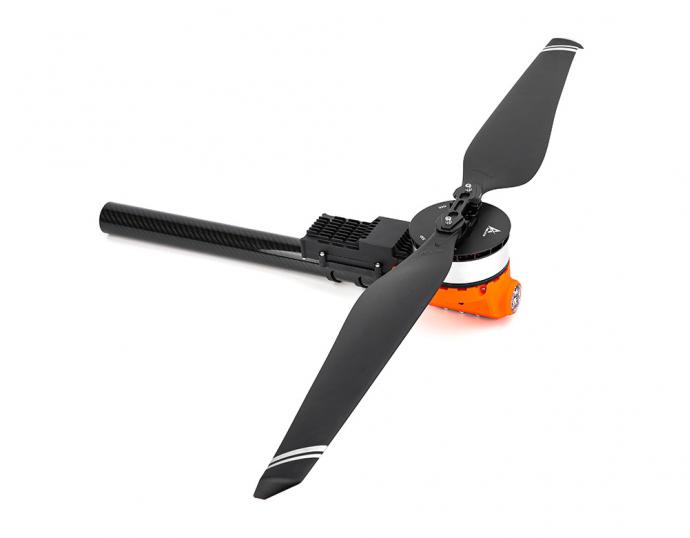

A10XL
A10XL
MODULARPROPULSION SYSTEM
The preferred solution for 30L and 40L agricultural drones

A10XL

MOTOR

14S FOC 200A

ESC

MF3628P

PROPELLER

A10XL RECOMMENDATIONS

Load capacity(liquid)

30L

Agriculture Quadcopter Drone

Load capacity(liquid)

40L

Agriculture Hexacopter Drone

Take-off weight

52~60kg

Quadcopter

Take-off weight

78~90kg

Hexacopter

Load capacity(liquid)

5L

Agriculture Quadcopter
Drone

Load capacity(liquid)

10L

Agriculture Hexacopter
Drone

Take-off weight

52~60kg

Quadcopter

Take-off weight

78~90kg

Hexacopter

A系列单品A系列单品A系列单品A系列单品

Silicone
protective cover
with two colors
optional

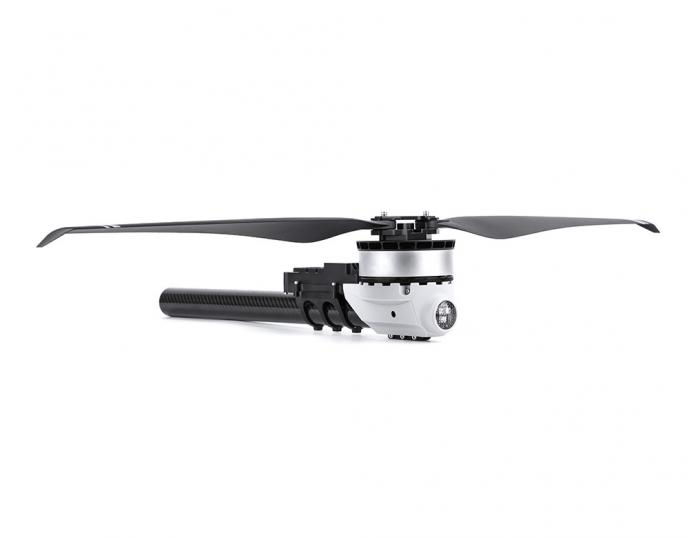

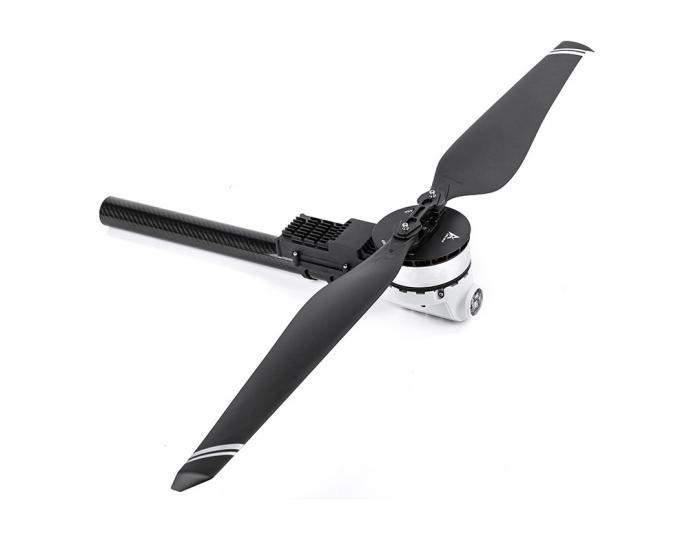

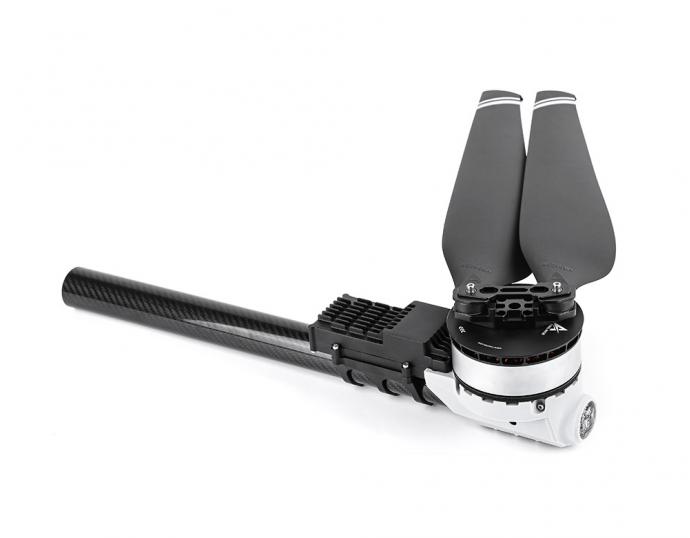

Silicone protective cover with two colors optional

Fluorescent
Orange

Industrial
Gray

Technical Drawing


Specification
Model No.A10XL KV130Tube size40mm
SetupA10XL (Motor)+14S FOC 200A (ESC)+MF3628P (Prop)Wire material,wire gauge, colorPower wires：12#AWG red & black
Signal wires: 5P Teflon
Recommended battery12~14S (LiPo)Wire length1150±5mm
Rated thrust13~15kgWeight1960g±2% (incl. Wires+prop)
Efficiency at rated thrust6.5g/W (15kg)IPIPX6
Max. thrust30kgRecommended ambient temperature-30℃～50℃
Motor specs.
Stator size99*24mmKV130
ESC specs.
Throttle range1100~1940us (fixed)Max. voltage61V
ProtocolDRONE CAN、 UAV CAN、CUBE CANPeak current(for a short time)200A
(Open environment
and temperature≤60℃)
Control methodPWM/CANBECNO
Prop specs
Model No.MF3628P (Polymer Folding)Length36 inch (914mm)
Test Data
TypeVoltage
(V)		Throttle
(%)		Current
(A)		Thrust
(g)		Motor
efficiency
(%)		Overall
efficiency
(gf/W)		Operating
temperature
(℃)
A10XL KV130
+
14S FOC 200A
+
MF3628P		46.37303.3520516813.2152
(Ambient temperature:
27.8)
46.53356.8236657611.6
46.444012.0056518110.1
46.314519.067912829.0
46.165028.3710300827.9
46.075539.8912985827.1
45.906053.1215560816.4
45.716568.7318315805.8
45.537085.1220818795.4
45.2475104.0923383775.0
44.8380123.8225663764.6
44.9385144.6727737734.3
44.9490145.6427927734.3
44.9395145.3727784724.3
44.92100145.9327922734.3
Note: Temperature in the chart is the stator temperature after running @80% throttle for 3mins.
(Data above based on benchtest at LIGPOWER lab are for reference only.)
A10XL KV130
+
14S FOC 200A
+
MF3628P		60.59305.5938827411.5146
(Ambient temperature:
27.8)
60.523511.106475809.6
60.404019.069475828.2
60.284529.0212592827.2
60.155040.6715683826.4
59.985553.3018654815.8
59.846066.5721386805.4
59.666580.9624137795.0
59.477095.3726667784.7
59.1875109.7628825774.5
58.9380122.5530484764.2
58.7285134.4731773754.0
58.5690143.7232523743.9
58.5395144.8432210743.8
58.53100144.2231991743.8
Note: Temperature in the chart is the stator temperature after running @80% throttle for 3mins.
(Data above based on benchtest at LIGPOWER lab are for reference only.)

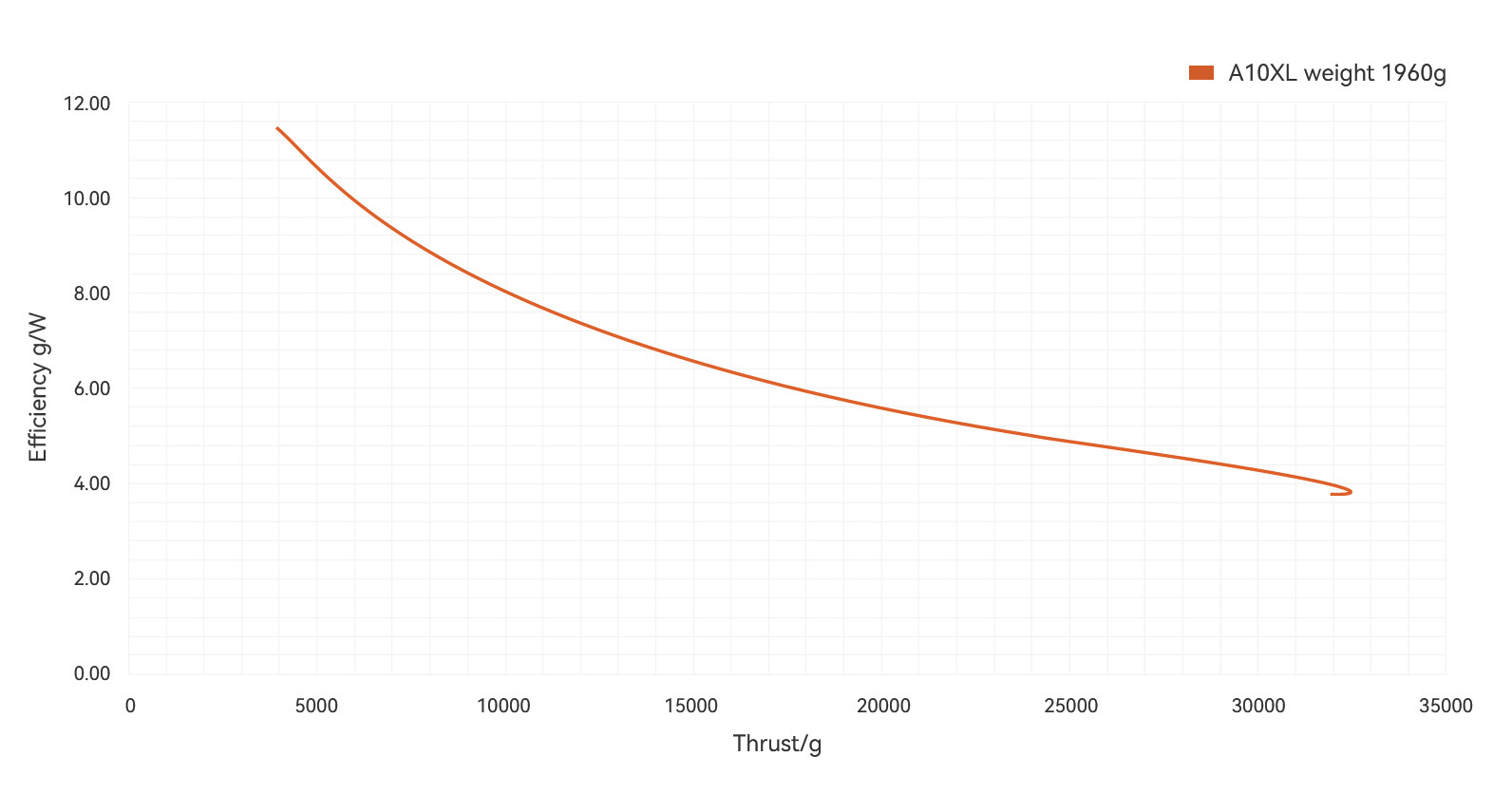

Analysis Chart

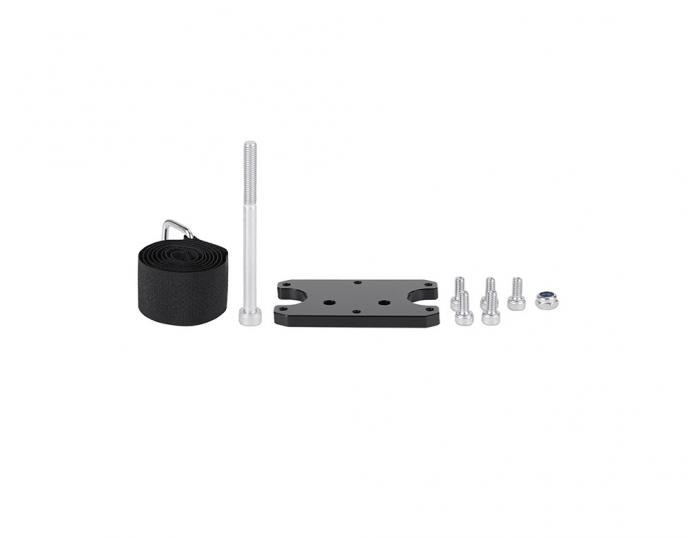

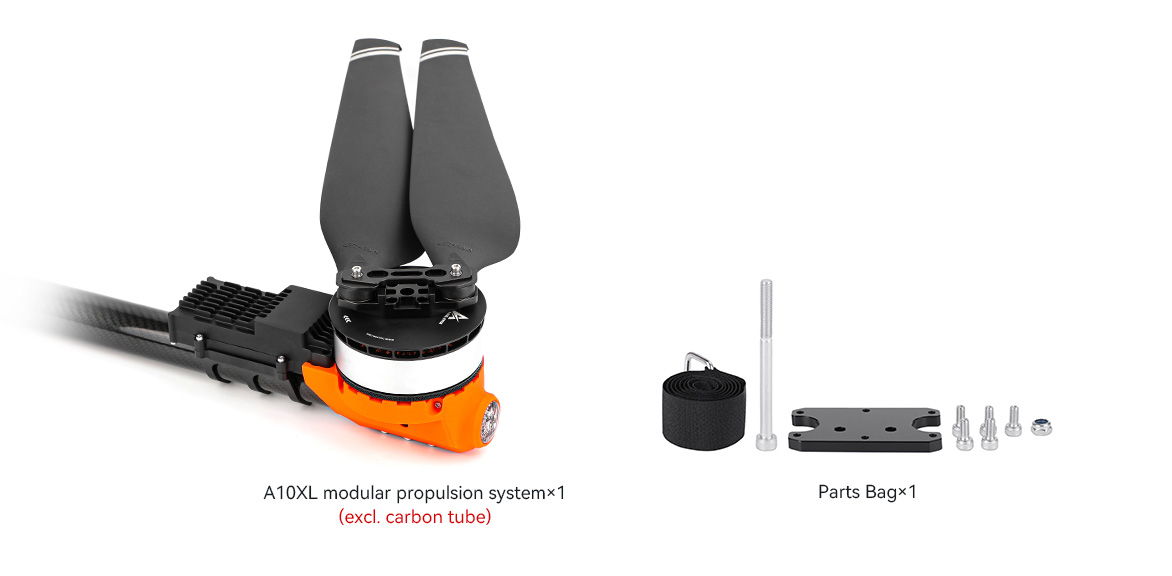

Packing List


Before using this product, please check if all the items listed above are included in the packaging. If there are any missing items, please contact our online customer service or leave message to " onlinesales@ligpower.com " in time.
