A10L
A10L
MODULARPROPULSION SYSTEM
The preferred solution for 20L and 30L agricultural drones

A10L

MOTOR

14S FOC 200A

ESC

MF3628P

PROPELLER

A10L RECOMMENDATIONS

Load capacity(liquid)

20L

Agriculture Quadcopter Drone

Load capacity(liquid)

30L

Agriculture Hexacopter Drone

Take-off weight

44~52kg

Quadcopter

Take-off weight

66~78kg

Hexacopter

Load capacity(liquid)

20L

Agriculture Quadcopter
Drone

Load capacity(liquid)

30L

Agriculture Hexacopter
Drone

Take-off weight

44~52kg

Quadcopter

Take-off weight

66~78kg

Hexacopter

A系列单品A系列单品A系列单品A系列单品

Silicone
protective cover
with two colors
optional

Silicone protective cover with two colors optional

Fluorescent
Orange

Industrial
Gray

Technical Drawing


Specification
Model No.A10L KV110Tube size40mm
SetupA10L (Motor)+14S FOC 200A (ESC)+ MF3628P (Prop)Wire material, wire gauge, colorPower wires：12#AWG red & black
Signal wires: 5P Teflon
Recommended battery12~14S (LiPo)Wire length1150±5mm
Rated thrust11~13kgWeight1800g±2% (incl. Wires+prop)
Efficiency at rated thrust6.9g/W (13kg)IPIPX6
Max. thrust25kgRecommended ambient temperature-30℃～50℃
Motor specs.
Stator size99*19mmKV110
ESC specs.
Throttle range1100~1940us (fixed)Max. voltage61V
ProtocolDRONE CAN、UAV CAN、CUBE CANPeak current(for a short time)200A
(Open environment
and temperature≤60℃
Control methodPWM/CANBECNO
Prop specs
Model No.MF3628P (Polymer Folding)Length36 inch (914mm)
Test Data
TypeVoltage
(V)		Throttle
(%)		Current
(A)		Thrust
(g)		Motor
efficiency
(%)		Overall
efficiency
(gf/W)		Operating
temperature
(℃)
A10L KV110
+
14S FOC 200A
+
MF3628P		46.28302.3717627016.1115
(Ambient temperature:
27.8)
46.41354.1527227614.2
46.50406.7138848012.5
46.454510.0851528211.0
46.365014.716689839.8
46.255520.578431838.9
46.146027.8410287838.0
46.076536.5412313827.3
45.937046.9214506826.7
45.747559.4116909816.2
45.578072.7619114815.8
45.388588.0621169795.3
45.1490102.5422846774.9
45.1495102.3822803774.9
45.13100102.1422623774.9
Note: Temperature in the chart is the stator temperature after running @80% throttle for 3mins.
(Data above based on benchtest at LIGPOWER lab are for reference only.)
A10L KV110
+
14S FOC 200A
+
MF3628P		60.34302.2619797114.5109
(Ambient temperature:
27.8)
60.47354.0531227612.7
60.44406.5244368011.3
60.37459.8859678110.0
60.305014.207669829.0
60.225519.649572828.1
60.176026.3211672827.4
60.106534.6913966816.7
59.957044.5216400816.1
59.827555.2818925815.7
59.668068.1021531805.3
59.468581.8723997794.9
59.409085.9424653784.8
59.389585.9624496784.8
59.3910085.6624557784.8
Note: Temperature in the chart is the stator temperature after running @80% throttle for 3mins.
(Data above based on benchtest at LIGPOWER lab are for reference only.)

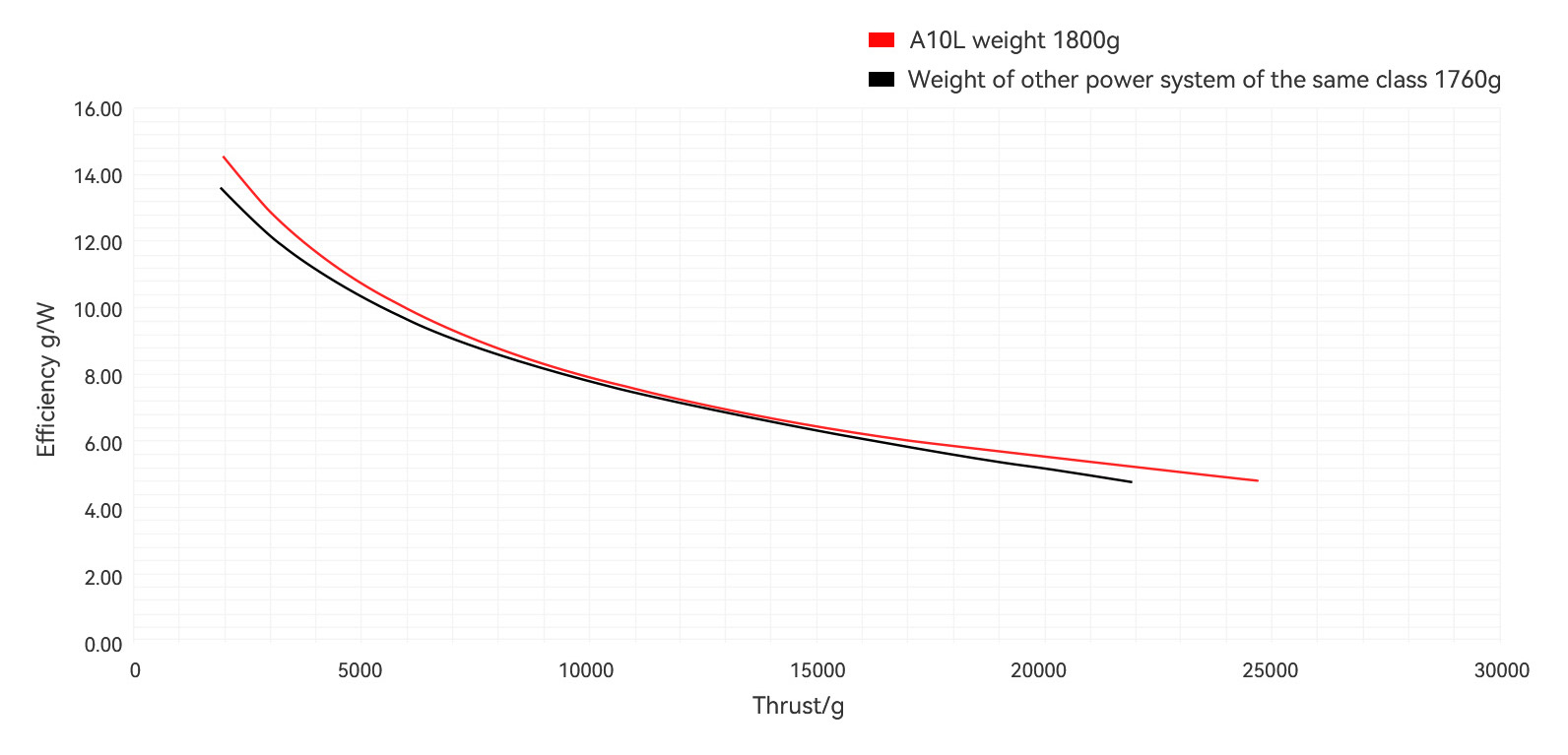

Analysis Chart

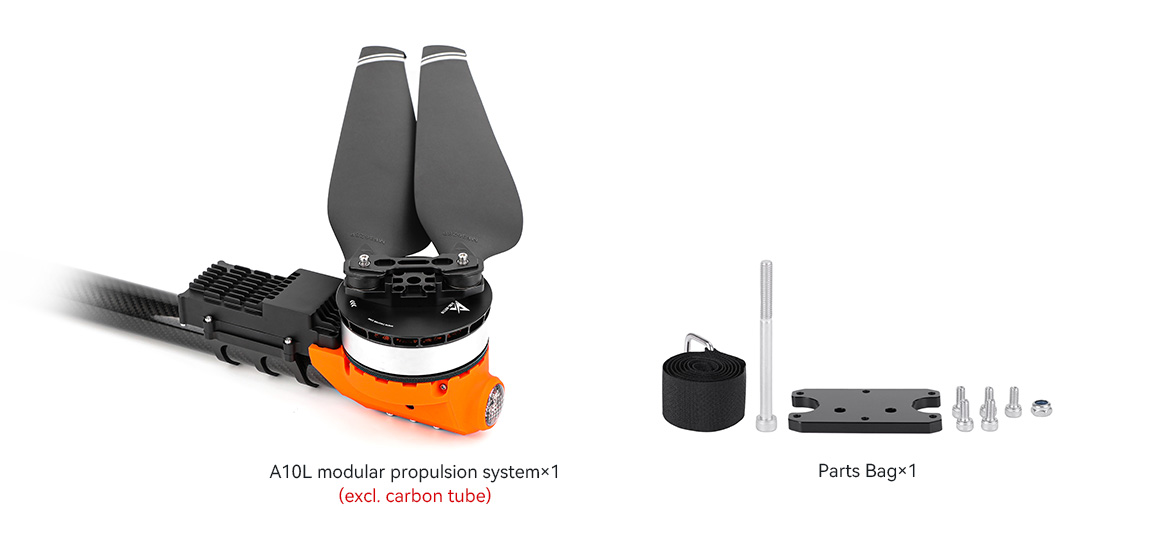

Packing List


Before using this product, please check if all the items listed above are included in the packaging. If there are any missing items, please contact our online customer service or leave message to " onlinesales@ligpower.com " in time.
