U13Ⅱ KV130 UAV Motor with 24.3kg Thrust for Heavy-Lift Drones

379.90

Available points: 18500 Points Points reward: 379 Points

• Max Thrust:24.3KG
• 1000h Service life
• Heavy load and industrial appplication
Parameter：
Quantity：

379.90

Free Shipping by DHL/UPS Express

Relevant Products
  • Detail information
  • Specifications

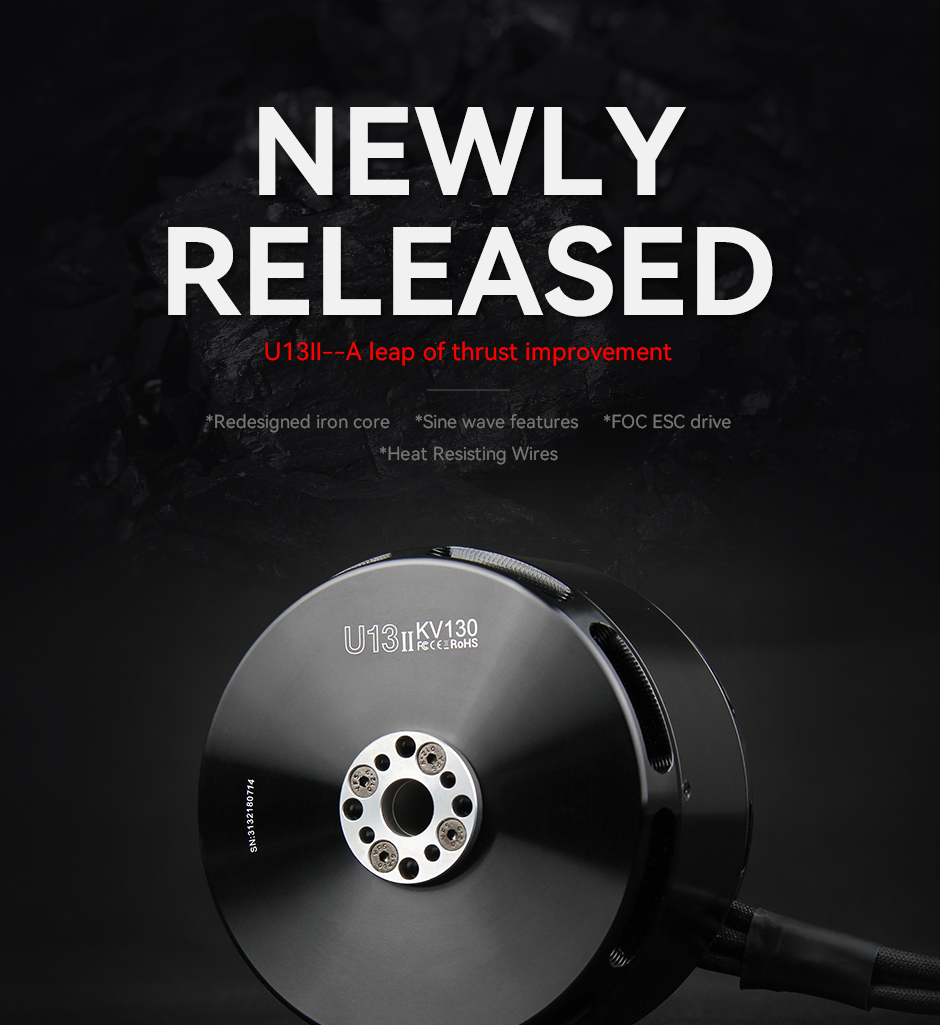

About LIGPOWER U13Ⅱ Power Type Multirotor UAV Motor KV130

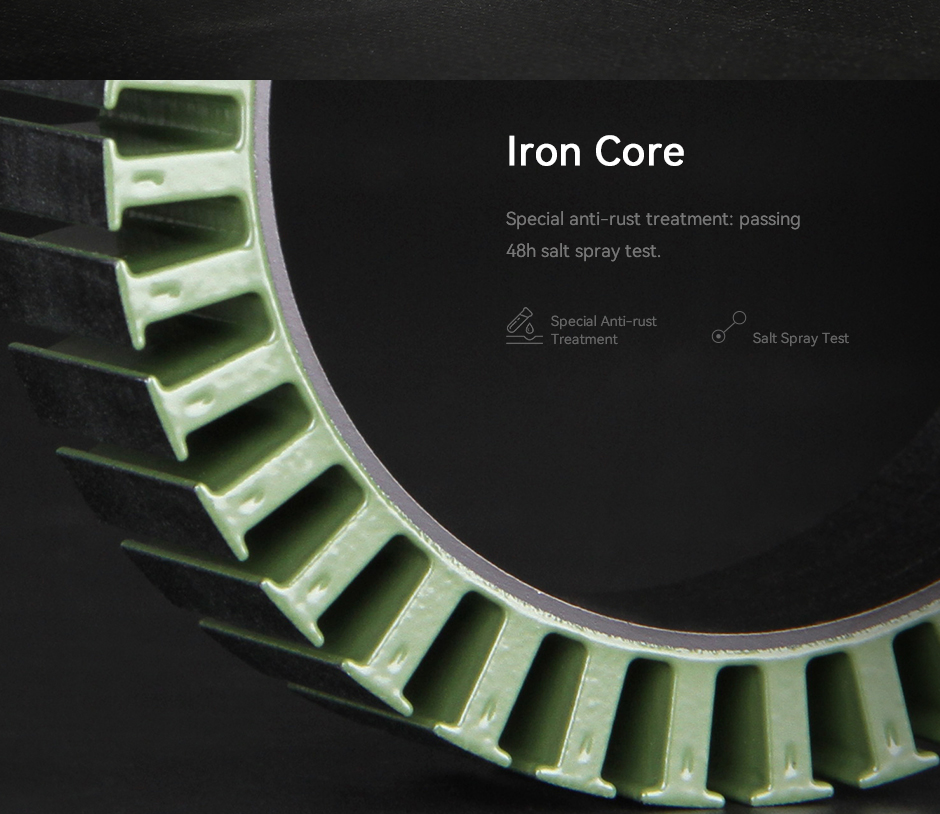

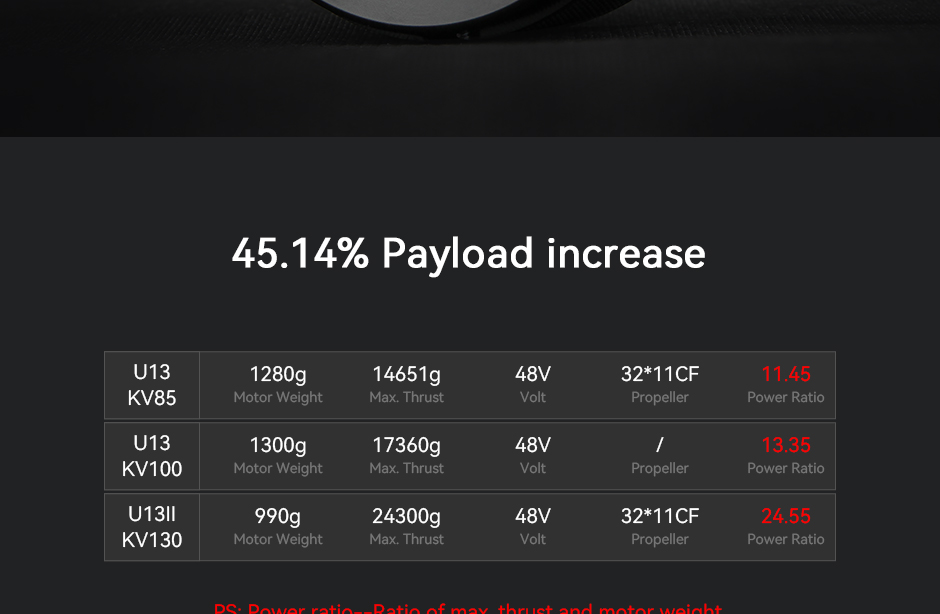

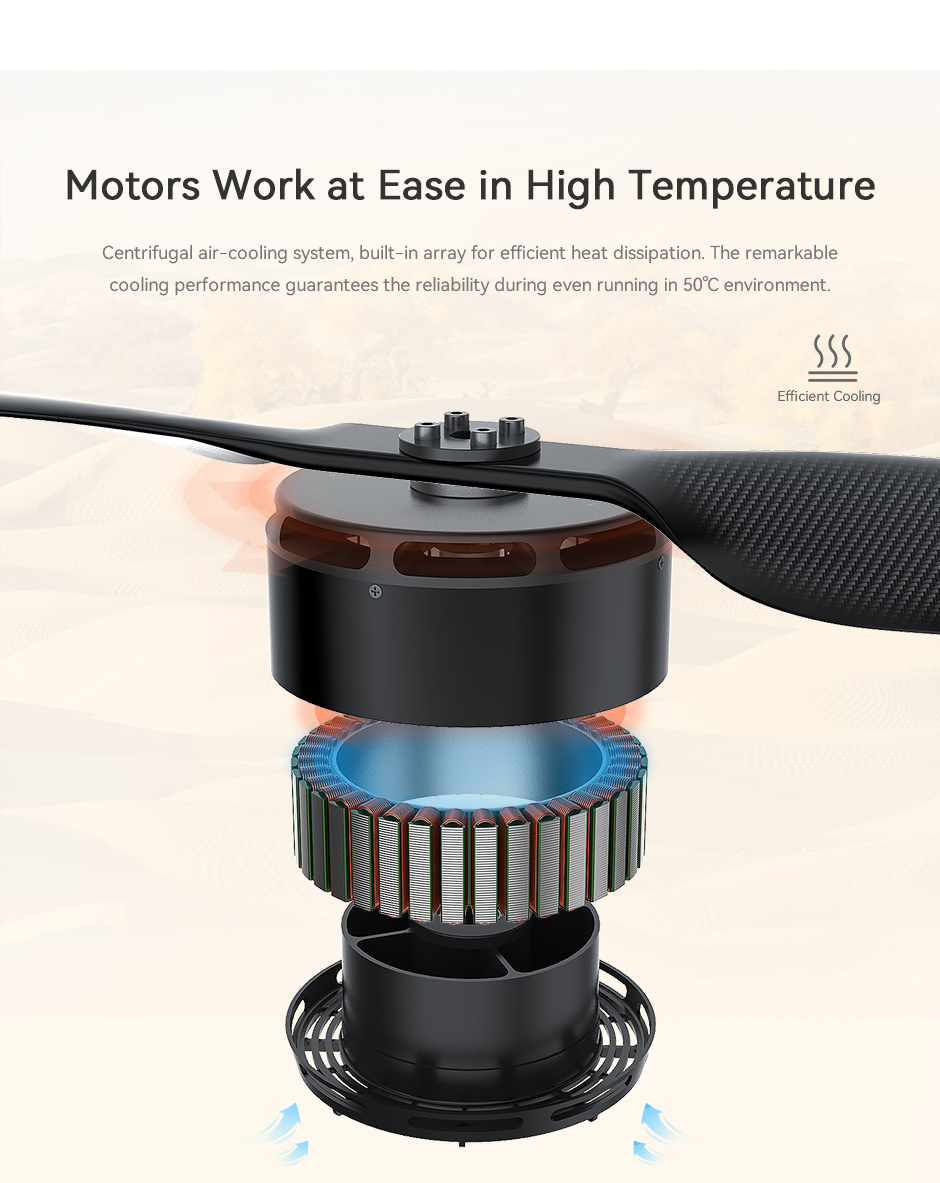

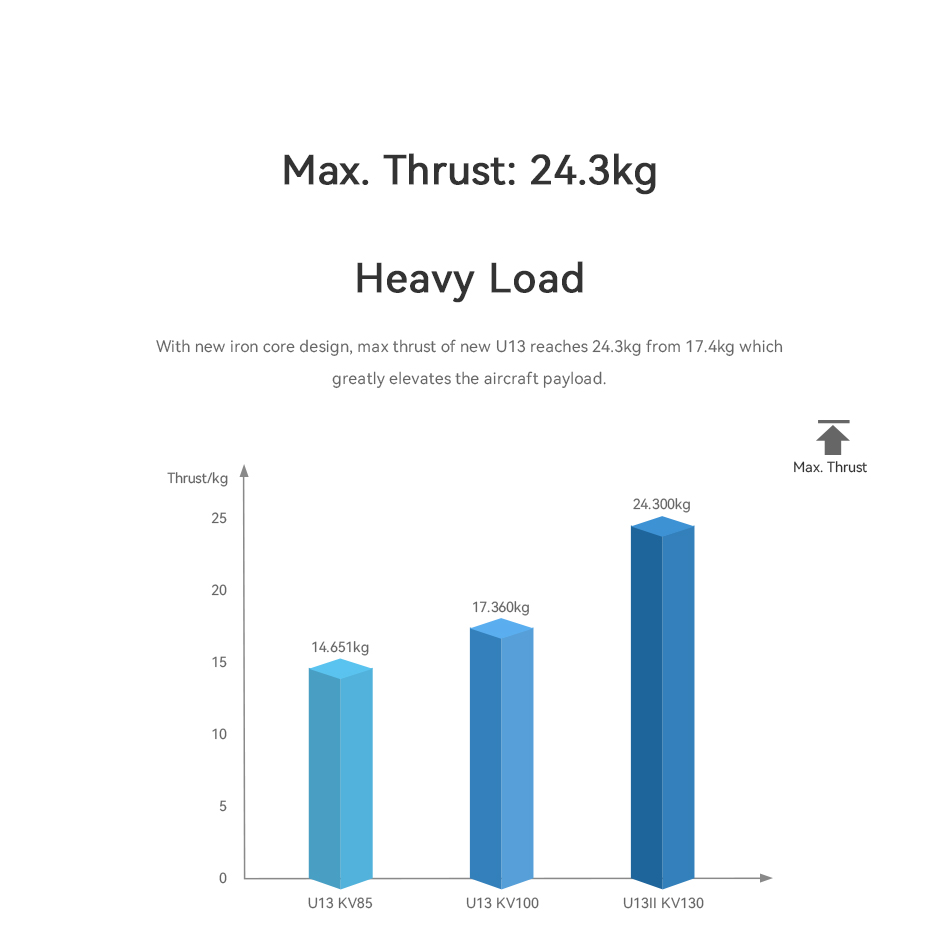

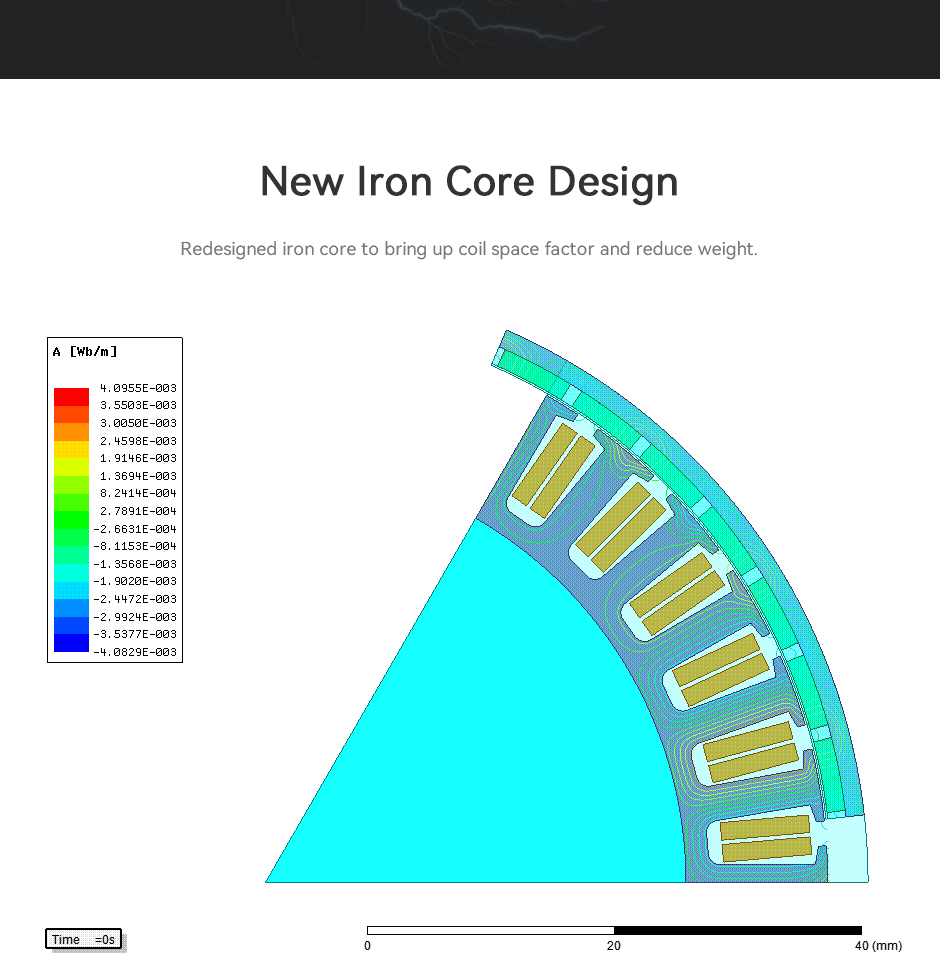

LIGPOWER UAV Brushless Multirotor Motor U13II KV130 delivers up to 24.3 kg thrust and has a 1000-hour service life. Designed for heavy loads and industrial use, it performs well at high temperatures. The newly redesigned iron core increases coil space and reduces weight, boosting the aircraft's payload capacity.

U13Ⅱ Highlights:

1.Max. thrust ：28.7kg

2.MTBF：About 1000hours

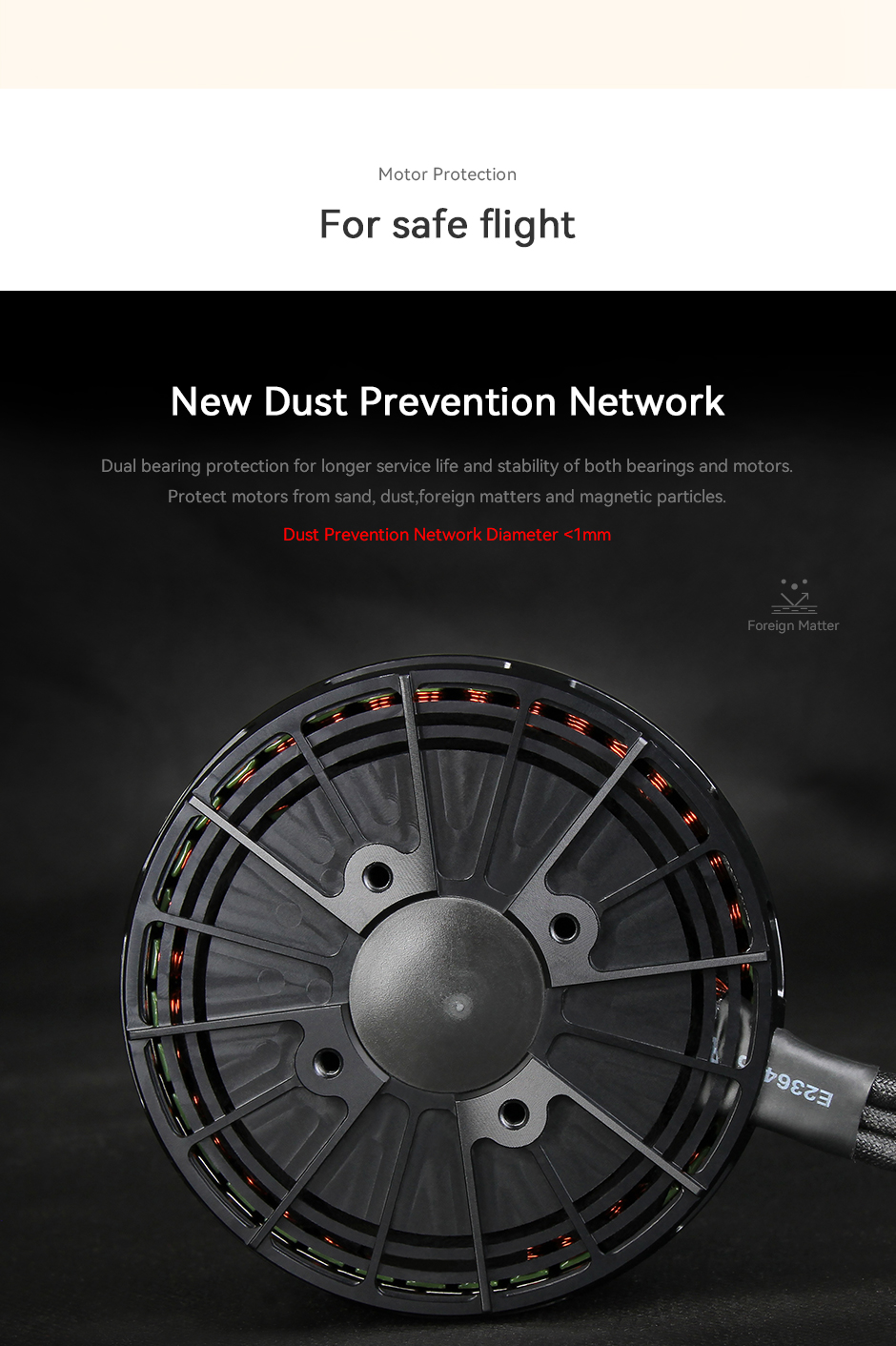

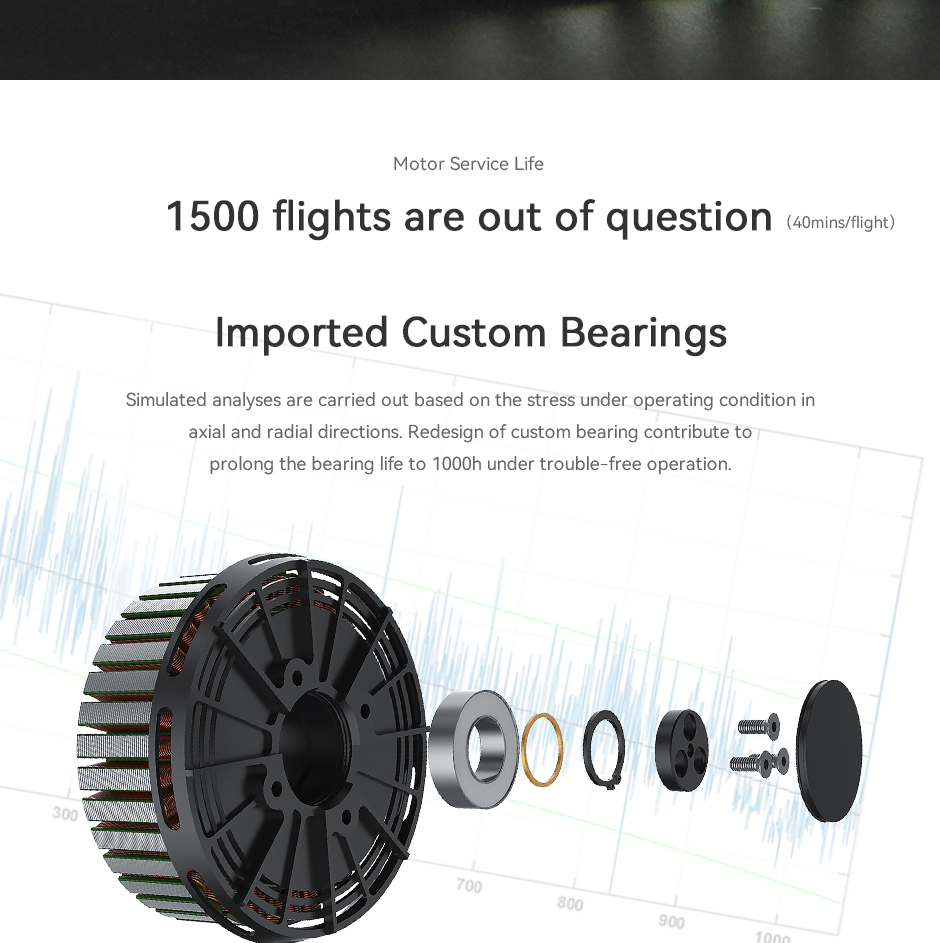

3.Features：Industrial Grade, Waterproof, dustproof, low noise, large bearings

4.Industrial grade, dust proof, water proof.


Application Areas：

Aerial photography, Filming, Delivery service and Agriculture applications.

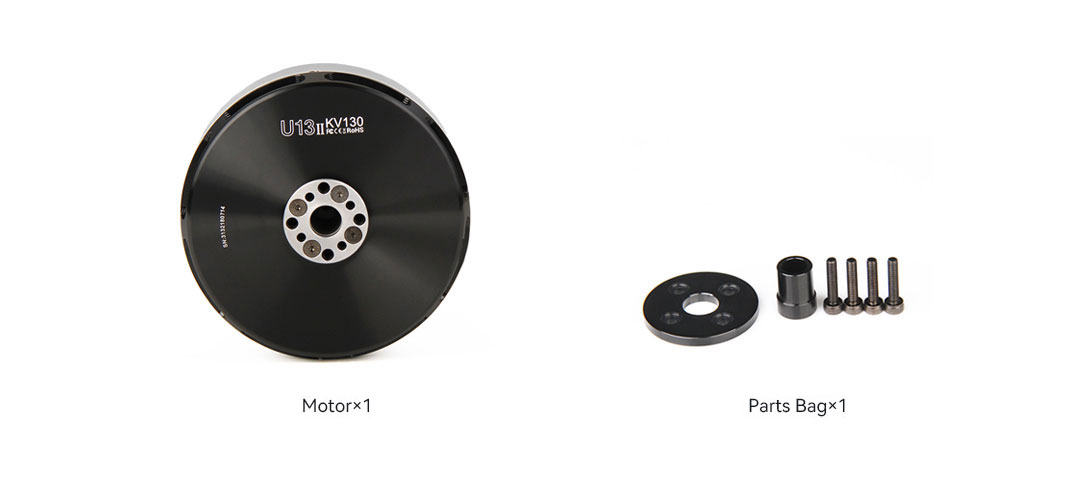

Packing List Includes:

1x LIGPOWER U13ⅡMotor KV130

1x Hardware pack


Matching Guide:

LIGPOWER G32*11 prop


If you have any questions or inquires, please contact us:  onlinesales@ligpower.com


Technical Drawing


Specification
Test ItemKV130Weight (Incl. Cable)990g
Motor DimensionsΦ100*60mmInternal Resistance18mΩ
LeadEnameled Wire 100mmConfiguration36N42P
Shaft Diameter15mmRated Voltage(Lipo)10-14S
Idle Current(18V)1.5APeak Current(180s)118A
Max. Power5659W
Test ItemKV65Weight (Incl. Cable)975g
Motor DimensionsΦ100*60mmInternal Resistance73mΩ
LeadEnameled Wire 100mmConfiguration36N42P
Shaft Diameter15mmRated Voltage(Lipo)22-25S
Idle Current(18V)1.7APeak Current(180s)68A
Max. Power6720W
Test Data
TypeVoltage
(V)		PropellerThrottleThrust
(g)		Torque
(N*m)		Current
(A)		RPMPower
(W)		Efficiency
(g/W)		Operating
Temperature
(℃)
U13Ⅱ
KV130		48LIGPOWER
G32*11“CF		50%77003.120.4026129797.86132

(Ambient
Temperature:

24℃)
55%10000430.80300014786.76
60%115004.738.40321518436.24
65%135005.546.70342822426.02
75%167006.965.40383231395.32
85%197008.183.70416440184.9
100%2430010117.90460956594.29
Note: Motor temperature is motor surface temperature at 100% throttle running 5mins.
(Date above based on benchtest are for reference only, comparion with that of other motor types is not recommended.)

U13 II
KV65

99.51G30*10.540%79753.310.8267910797.497℃
99.4745%87843.712.5282312437.1
99.4450%97594.114.4296414316.8
99.3955%108964.416.3310616226.7
99.3360%118794.718.5323518386.5
99.2865%130785.021.3340621106.2
99.2170%145005.624.4357124206.0
99.1175%159716.228.3376928095.7
99.0280%176757.033.1396432785.4
98.7990%215228.544.1434243554.9
98.54100%247449.754.7465453894.6
99.44G32*1140%85853.511.7248511617.4115℃
99.4045%96713.913.8263913747.0
99.3650%107144.316.0277715896.7
99.2955%118714.718.7292218546.4
99.2360%131285.221.4305521256.2
99.1565%147985.925.3323525125.9
99.0670%164396.629.8341429555.6
98.9375%183807.434.9359634505.3
98.7880%208898.342.1380341565.0
98.5390%249829.954.7412553924.6
98.22100%2871111.468.5439767274.3
Note: Motor temperature is motor surface temperature at 100% throttle running 10mins.
(Date above based on benchtest are for reference only, comparion with that of other motor types is not recommended.)
Packing List


Before using this product, please check if all the items listed above are included in the packaging. If there are any missing items, please contact our online customer service or leave message to " onlinesales@ligpower.com " in time.
