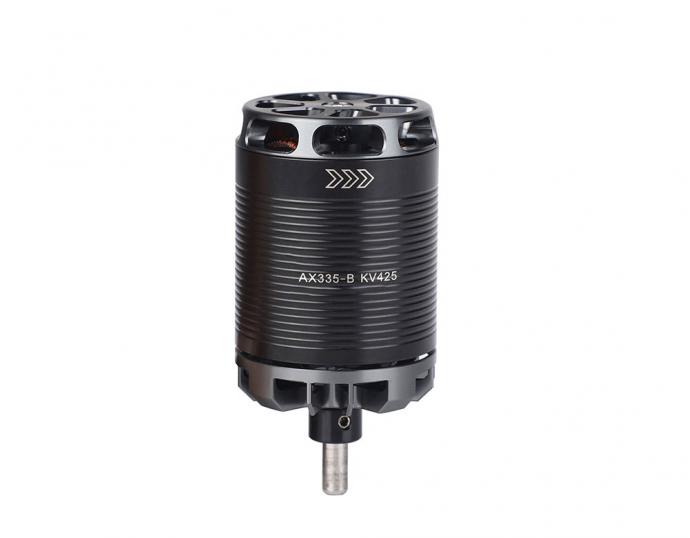

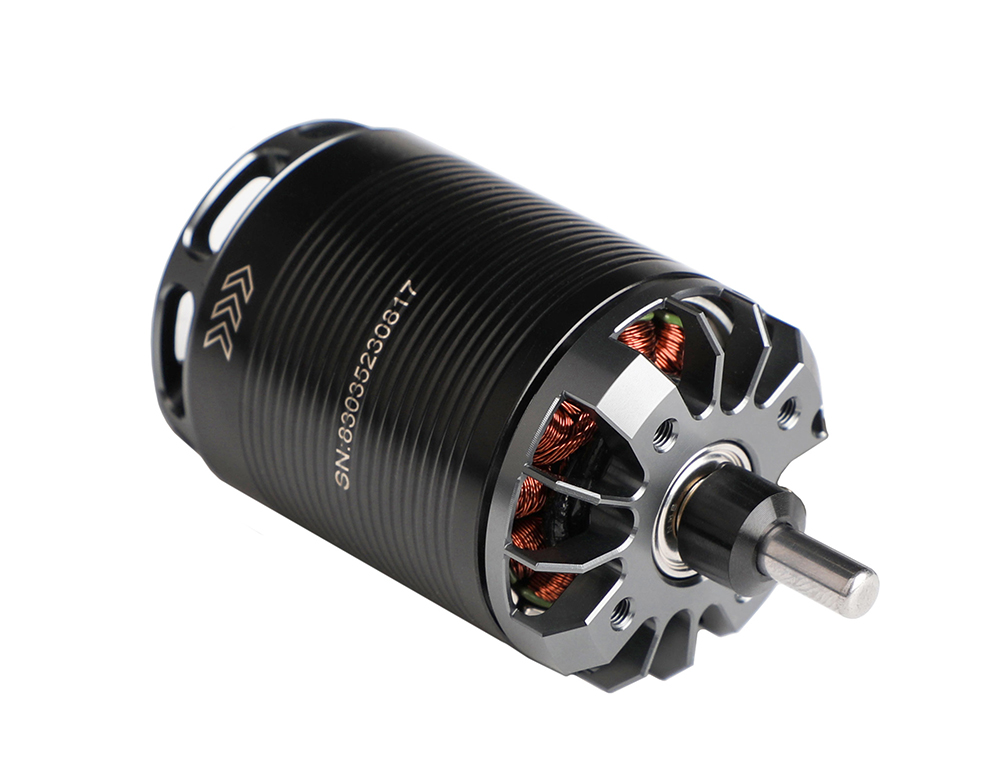

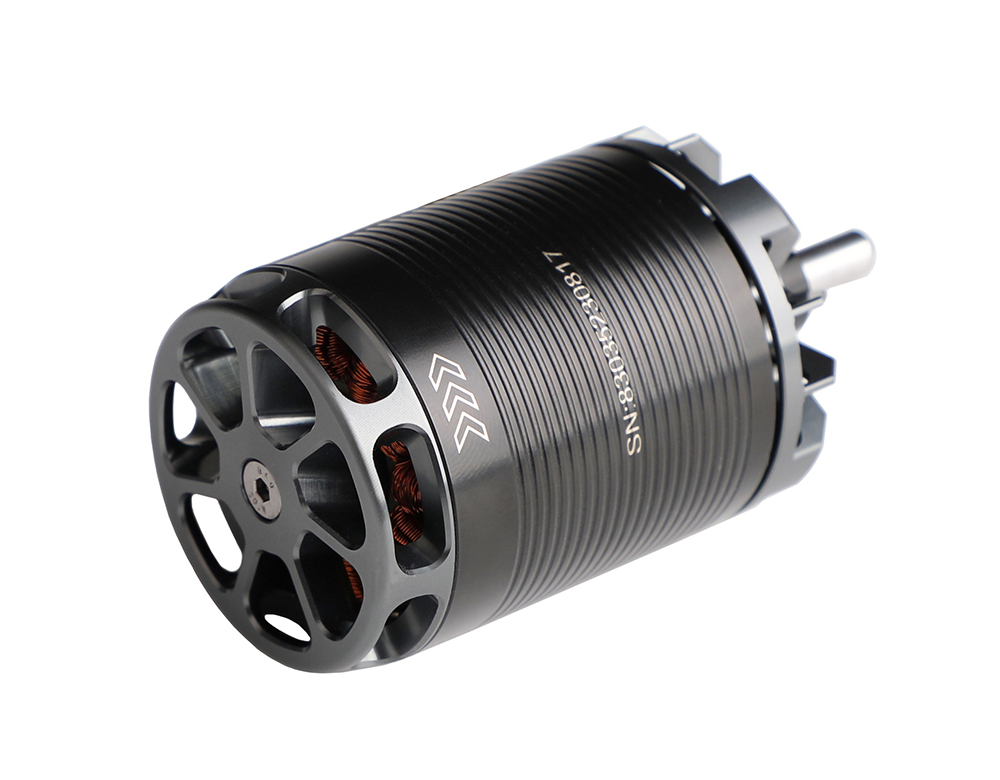

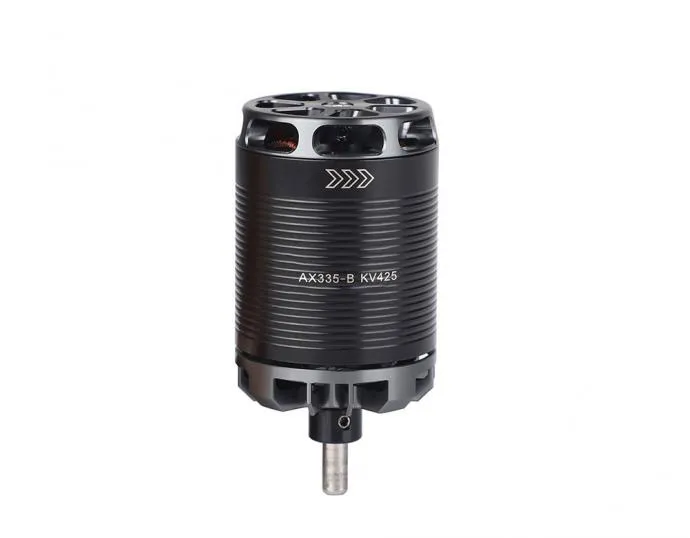

AX335-B KV425 High-Efficiency Long-Endurance Cruise Motors for Fixed-Wing Drones

99.90

Available points: 0 Points Points reward: 99 Points

• Maximum thrust 1.6kg
• Recommended takeoff weight 2-3kg
• Long-endurance efficiency cruise motors for fixed-wing drones
• Excellent resistance to shocks and overloads
• Skeletonized structure design for efficient heat dissipation and cooling of the motor
Quantity：

99.90

Free Shipping by DHL/UPS Express

  • Detail information
  • Specifications

Explore The AX335-B KV425 High-efficiency, Long-endurance Cruise Motors For Fixed-wing drones

The AX335-B fixed-wing motor is a high-efficiency power solution designed for long-endurance flight missions in surveillance drones and UAVs. Engineered to
deliver exceptional reliability and efficiency, this motor is built to withstand extended flight demands for aerial reconnaissance, mapping, and inspection missions.

Performance Advantages of the AX335-B Motors

High Efficiency: Optimized for long-endurance flights with efficient power delivery.
Power Handling: Supports input power up to 1500W, with a rated power of 700W, making it suitable for various flight conditions.
Lipo Battery Compatibility: Optimized for 6-8S Lipo batteries, providing the voltage range needed for high-performance aerial operations.
Durable Construction: Features a robust design with high-quality materials to ensure longevity and reliability in demanding environments.
Efficient Cooling: Incorporates advanced cooling mechanisms to maintain optimal operating temperatures during extended flights.

Technical Specifications

Model: AX335-B
KV Rating: 425 KV
Weight: 260g
Dimensions: φ39×76.5mm
Shaft Diameter: 5mm
Voltage Support: 6-8S Lipo
Rated Power: 700W
Maximum Power: 1500W
Torque Output: 1.6kg
Propeller Compatibility: Designed for 12-13 inch propellers
ESC Recommendation: Compatible with 60A 6S/8S electronic speed controllers
Optimal Takeoff Weight: Suitable for aircraft with a takeoff weight of 2-3kg

Whether you're deploying drones for surveillance, aerial mapping, or infrastructure inspection, the AX335-B motor provides the power and reliability needed to ensure mission success. Its high efficiency and robust construction make it an ideal choice for professionals demanding top-tier performance from their UAV platforms.

AX Series Brushless Motor

A Propulsion System Designed For Fixed-Wing Cruising Aircraft

There are two interfaces based on internal and external designs: one built-in rear shaft design, the other one external propeller adapter design with excellent impact resistance and overload resistance. To provide stable and efficient power support for different types of fixed-wing cruising aircrafts.

SPECIFICATIONS
Recommendations

    • Model：

    • AX335-B

    • KV：

    • KV425

    • Motor Weight（Incl. Cable）：

    • 260g

    • Rated Voltage (Lipo)：

    • 6-8S

    • Propeller Recommendation：

    • 12-13〃

    • Rated power：

    • 700W

    • Take off weight：

    • 2-3kg

    • Max. Power：

    • 1500W

    • Max. Thrust：

    • 1.6kg

GOOD HEAT DISSIPATION

Stable operation of equipment. The hollowed and tilted design in front cover increases the speed of air entering to optimize heat dissipation performance and get cooling better.

Impact resistance and overload resistance

High-quality military wire and large-size bearings ensure the working of the motor under high overload conditions.

modularization and technology

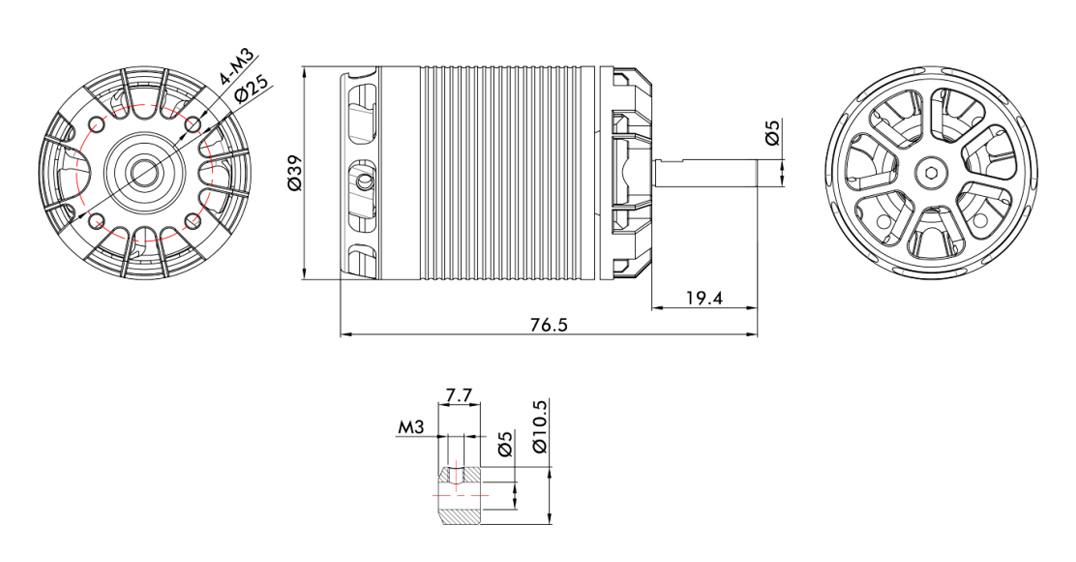

Technical Drawing


Specification
Test ItemKV425Weight (Incl. Cable)260g
Motor DimensionsΦ39*76.5mmInternal Resistance50mΩ
LeadEnameled Wire*120mmConfiguration12N14P
Shaft DiameterIN:5 OUT:5Recomended battery/voltage6S-8S
Idle Current(10V)1.7APeak Current(180s)60A
Max. Power(180s)1500W(8S)Recomended ESC/Propeller60A(6S)/60A(8S)/12*20
Test Data
TypePropellerThrottleVoltage
(V)		Current
(A)		Power
(W)		RPMTorque
(N*m)		Thrust
(g)		Efficiency
(g/W)

Operating

Temperature

(℃)

AX335-B

KV425

12*2040%22.173.2471.8231310.1612022.8296
45%22.154.4097.5235050.2002552.62
50%22.135.97132.1539020.2523082.33
55%22.107.74171.1342720.3003802.22
60%22.089.44208.4745990.3454322.07
65%22.0411.45252.3348960.3934931.95
70%22.0113.53297.7851980.4385511.85
75%21.9716.48362.0355660.5026291.74
80%21.9219.42425.5658800.5597021.65
90%21.8126.41575.9365090.6798561.49
100%21.6635.69773.1371630.82510451.35
12*2040%29.565.25155.1341230.2883412.20197
45%29.527.08208.8945620.3464192.01
50%29.499.18270.6749790.4135071.87
55%29.4611.36334.5153750.4755911.77
60%29.4213.93409.6757520.5446721.64
65%29.3517.90525.4162600.6427951.51
70%29.2922.13648.0967030.7409211.42
75%29.2226.73781.0771310.83310401.33
80%29.1531.00903.7875030.91911541.28
90%28.9841.871213.3582421.10813891.14
100%28.7655.451594.8489851.31116471.03
Note: Motor temperature is motor surface temperature at 100% throttle running 1mins.
(Date above based on benchtest are for reference only, comparion with that of other motor types is not recommended.)

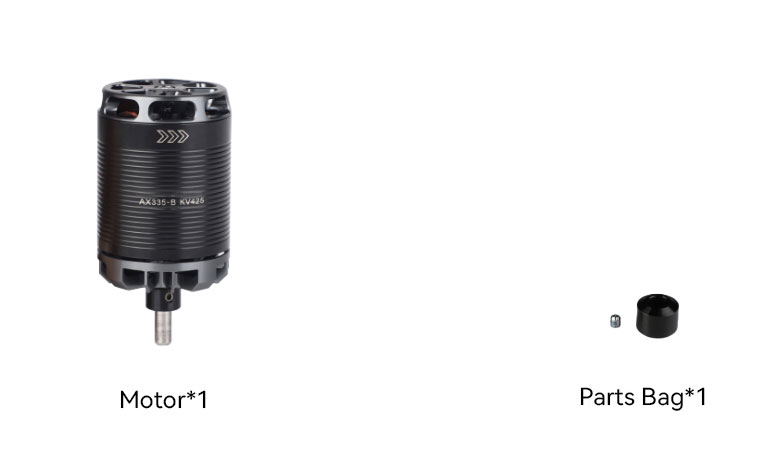

Packing List


Before using this product, please check if all the items listed above are included in the packaging. If there are any missing items, please contact our online customer service or leave message to " onlinesales@ligpower.com " in time.
