501-X Integrated Propulsion System Drone Arms for 6S / 12S UAVs

180.00

Available points: 9000 Points Points reward: 180 Points

• Fast and convenient
• Free of complicated mounting process
• Turn-key system, perfect compatibility, superb cost performance
• Modularized propulsion system
Parameter：
  • MN501-S KV300+ALPHA 40A LV
  • MN501-S KV360+ALPHA 40A LV
  • MN501-S KV360+ALPHA 40A LV+MF1806
  • MN501-S KV300+ALPHA 40A LV+MF2009
  • MN501-S KV240+ALPHA 60A HV
  • MN501-S KV240+ALPHA 60A HV+MF1503
Quantity：

180.00

Free Shipping by DHL/UPS Express

Relevant Products
  • Detail information
  • Specifications

About 501-X Integrated Propulsion System – Modular Drone Arm Set for Industrial UAV Performance
The LIGPOWER X-STANDARD 501-X Combo Pack revolutionizes industrial drone propulsion with its fully integrated arm system, combining motors, FOC ESCs, and X·carbon fiber propellers into one seamless unit. Designed for durability and flexibility, it supports 6S/12S battery systems and offers six customizable configurations to match payload, flight time, and power requirements.


Key Features

  • All-in-One Integration: Motor + FOC ESC + Carbon Propeller pre-installed for plug-and-play reliability.

  • Switchable Tube Sizes: 30mm or 25mm arms with adapter rings for quick compatibility adjustments.

  • 6 Configurations: Optimize for power, efficiency, or specialized tasks (see options below).

  • Industrial-Grade Build: Carbon fiber props and corrosion-resistant materials for harsh environments.

  • Dynamic Balancing: Precision-balanced propulsion for vibration-free aerial operations.

6 Configurable Options

  1. MN501-S KV300 + ALPHA 40A 6S: Lightweight efficiency for long-endurance flights.

  2. MN501-S KV360 + ALPHA 40A 6S: High-speed agility for rapid-response missions.

  3. MN501-S KV360 + ALPHA 40A 6S + MF1806: Enhanced thrust with auxiliary cooling.

  4. MN501-S KV300 + ALPHA 40A 6S + MF2009: Heavy-lift stability for payloads up to 5.2kg.

  5. MN501-S KV240 + ALPHA 60A 12S: High-voltage power for 6-12S industrial drones.

  6. MN501-S KV240 + ALPHA 60A 12S + MF1503: Extreme-duty cooling for continuous high-load operations.


Technical Highlights

  • Motor Options: KV240/KV300/KV360 motors tailored for 6S or 12S systems.

  • FOC ESC Technology: Smooth torque control and 95%+ efficiency.

  • Carbon Fiber Props: X·series aerofoil design for minimal drag and max lift.

  • Modular Design: Swap tubes or components in minutes without tools.


Why Choose the X-STANDARD 501-X?

  • Time-Saving Integration: Eliminate compatibility guesswork – everything works out of the box.

  • Adapt to Any Mission: From agricultural spraying to cargo delivery, select the ideal arm configuration.

  • Future-Proof: Upgrade individual components (motors, ESCs) without replacing the entire arm.


Applications

  • Precision agriculture (spraying, mapping)

  • Logistics & heavy payload delivery

  • Infrastructure inspection (power lines, pipelines)

  • Search & rescue operations


Specifications

  • Tube Sizes: 30mm / 25mm (adapter included)

  • ESC Compatibility: ALPHA 40A 6S / ALPHA 60A 12S

  • Propeller Material: High-strength carbon fiber

  • Warranty: 12-month manufacturer warranty

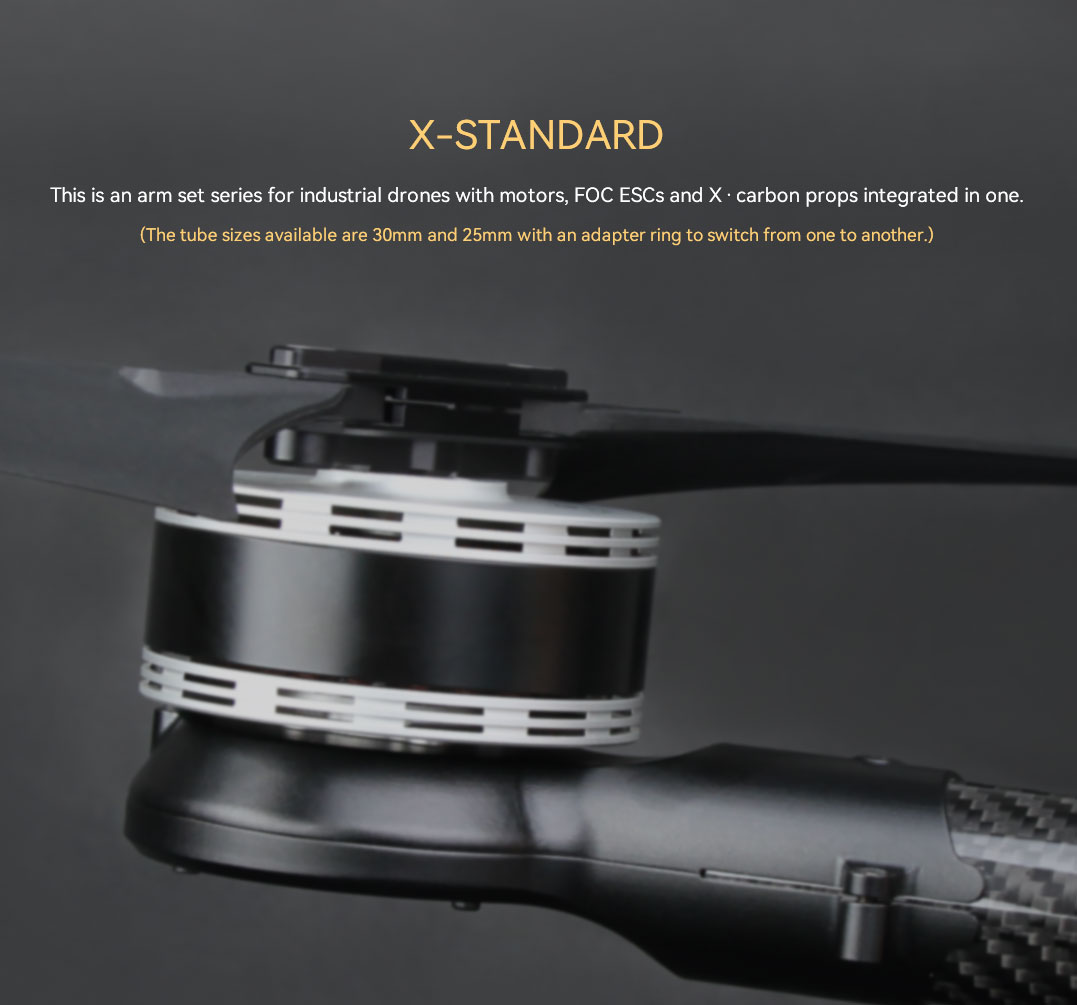

501-Xwith motors,FOC ESCs and carbon props integrated in one.

501-XRecommended

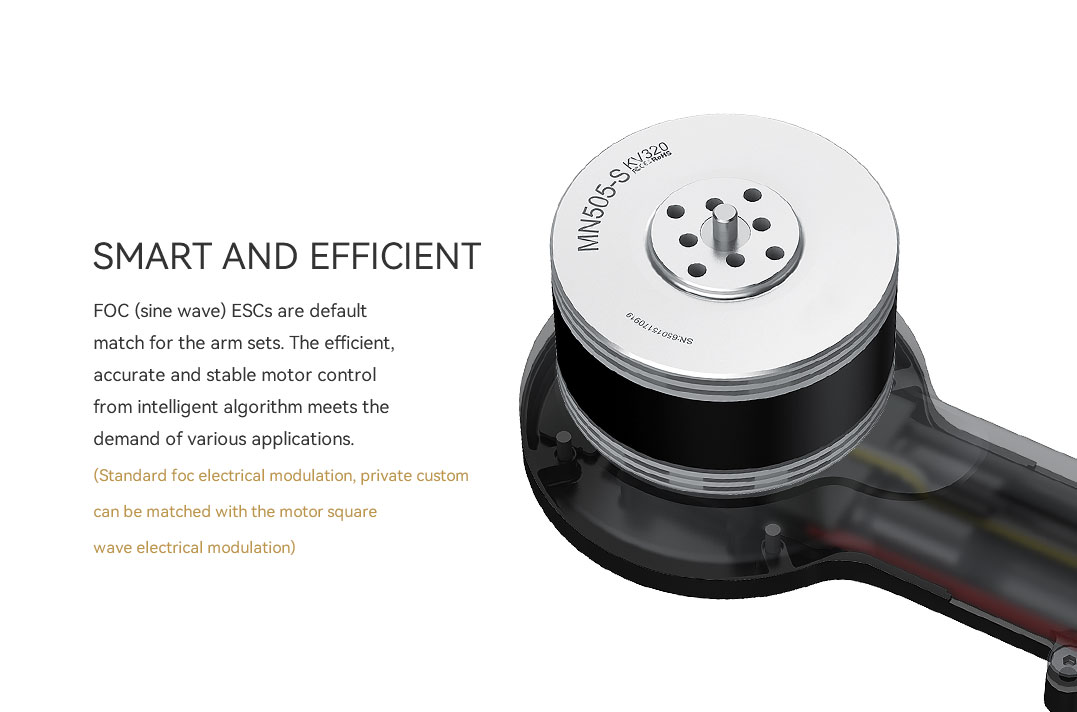

501-Xsmart and efficient

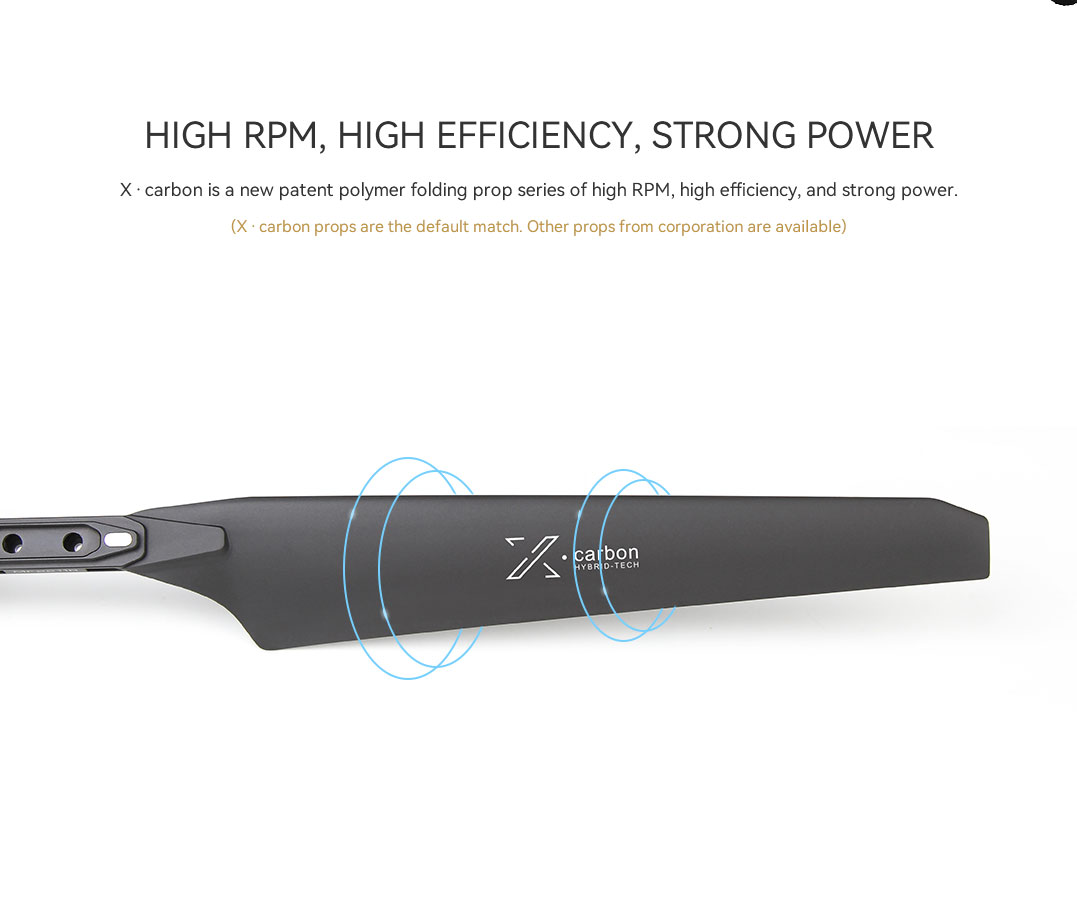

501-Xhigh rpm,high efficiency, strong power

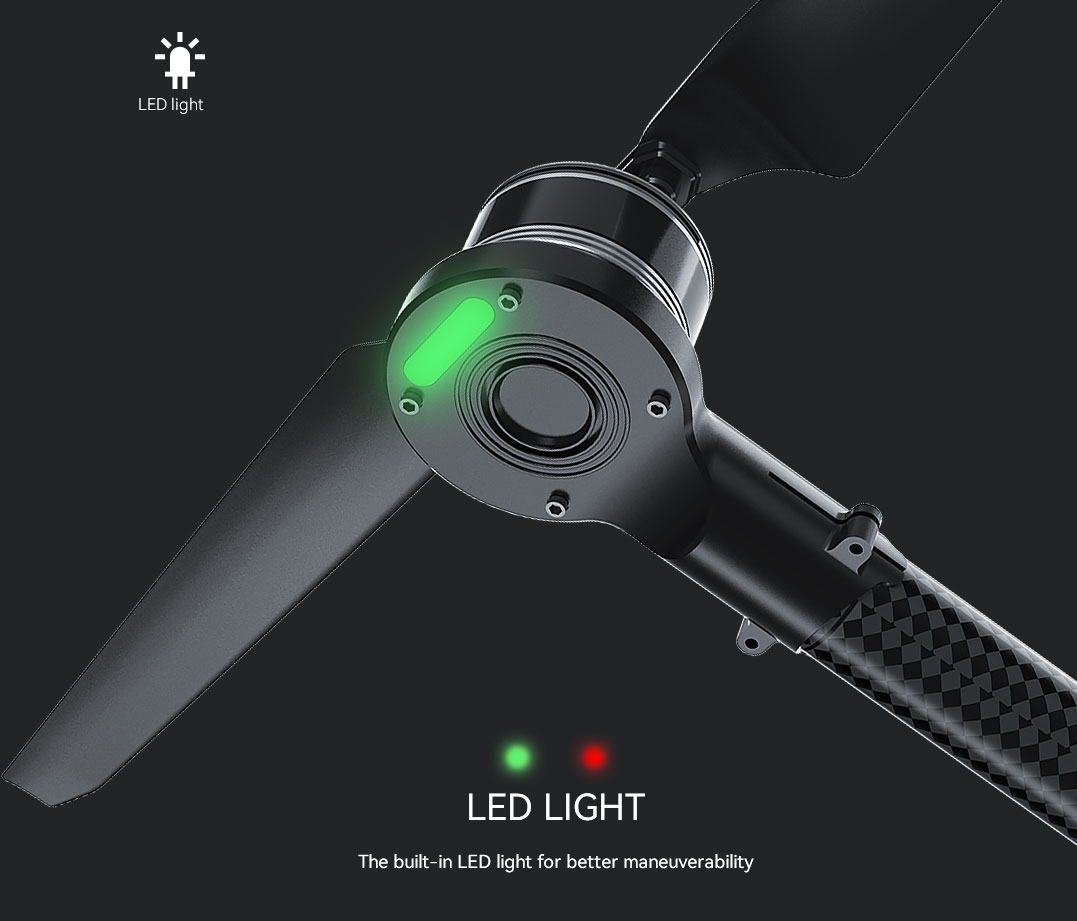

501-XLED light

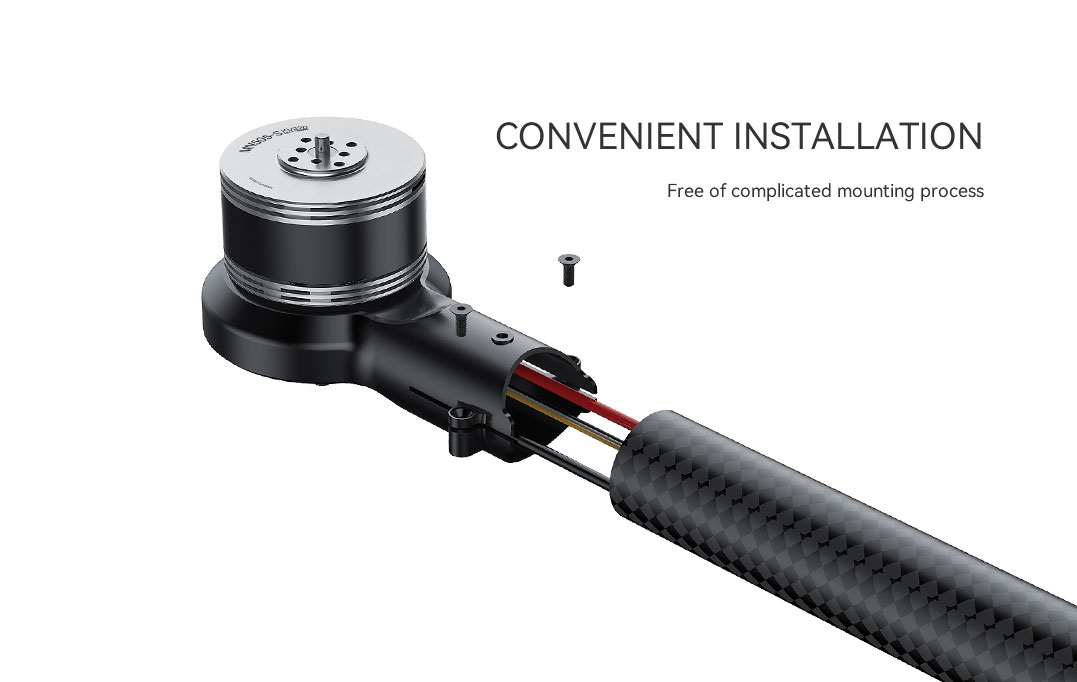

501-Xfree of complicated mounting process

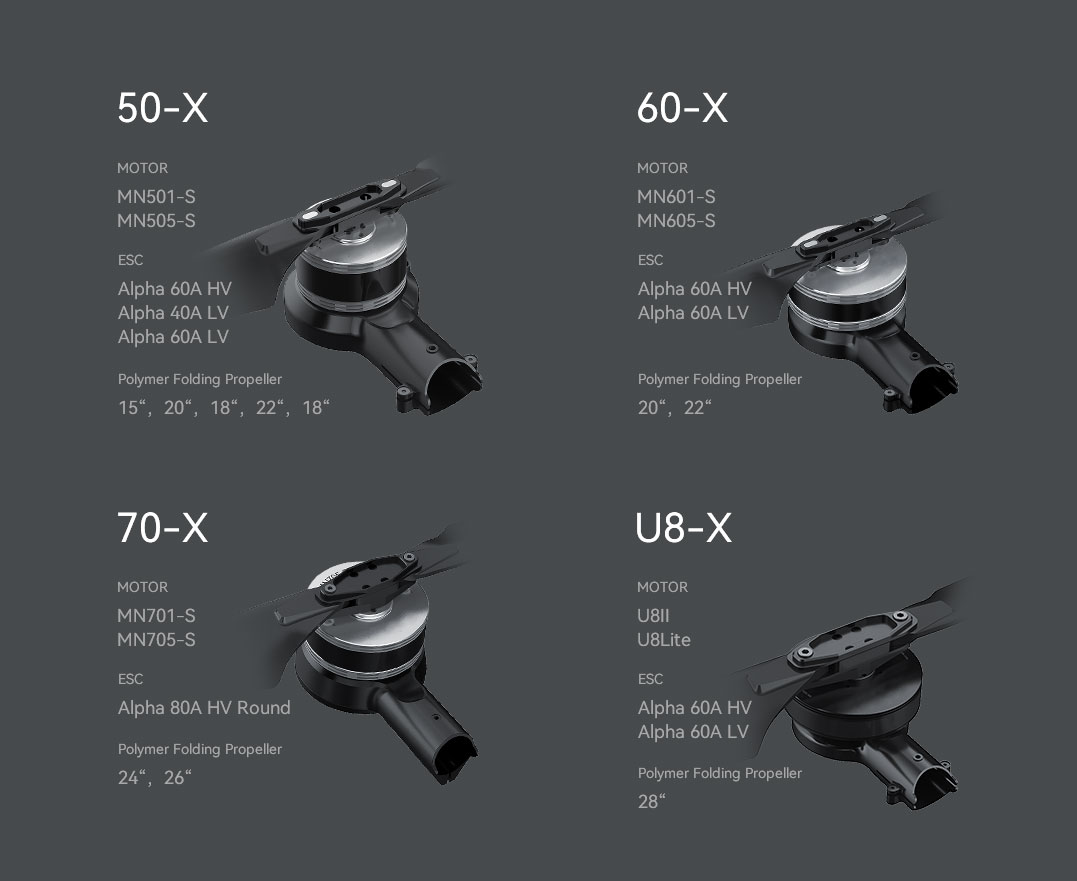

Matching Table
Arm SetCompatible
Tube Size		MotorKVDefault ESCDefault
Propeller		Propeller OptionsCustom ESC
501-X25mm/30mm
(25mm=30mm+
adapter)		MN501-SKV240ALPHA 60A 12S V1.2MF1503P15*5, FA15.2*5FLAME 60A 12S
KV300ALPHA 40A 6SMF2009P20*6, FA20.2*6.6ALPHA 60A 12S V1.2,
AIR 40A
KV360MF1806P18*6.1, FA18.2*5.9
505-XMN505-SKV320ALPHA 60A 6SMF2211P22*6.6, FA22.2*7.2FLAME 60A 12S
KV380MF1806P18*6.1, FA18.2*5.9
601-XMN601-SKV170ALPHA 60A 12S V1.2MF2009P20*6, FA20.2*6.6FLAME 60A 12S
KV320ALPHA 60A 6SP20*6, FA20.2*6.6
605-XMN605-SKV170ALPHA 60A 12S V1.2MF2211P22*6.6, FA22.2*7.2FLAME 60A 12S
KV320ALPHA 60A 6S
701-XMN701-SKV135ALPHA 80A 12S
Round		MF2614P24*7.2-10mm Hole,
G24*7.8, FA24.2*7.9		/
705-XMN705-SKV125ALPHA 80A 12S
Round		MF2614G26*8.5, FA26.2*8.5/
U8Ⅱ-X
U8 Lite-X
XU8-X		U8Ⅱ
U8 Lite
XU8		KV85ALPHA 60A 12S V1.2MF2815G28*9.2, FA28.2*9.2FLAME 60A 12S
KV100
KV150ALPHA 60A 6S
KV190
6007Ⅱ-X25mm/28mm6007ⅡKV160ALPHA 60A 12S V1.2MF2211FA22.2*7.2,
NS22*6.6, P22*6.6		FLAME 60A 12S
KV320ALPHA 60A 6S
P60-X25mm/30mm
(25mm=30mm+
adapter)		P60KV170FLAME 60A 12SMF2211P22*6.6, G22*7.2/
P80-X30mm/35mm
or 40mm
(Notify us your tube size)		P80KV100/KV120ALPHA 80A 12SMF3016P30*10, G30*10.5FLAME 80A 12S,
FLAME 100A 14S
X-50125mm/30mm
(25mm=30mm+
adapter)		MN501-SKV240ALPHA 60A 12S V1.2P15*5/FLAME 60A 12S
KV300ALPHA 40A 6SP20*6/ALPHA 60A 6S,
AIR 40A
KV360P18*6.1/
X-505MN505-SKV320ALPHA 60A 6SP22*6.6/FLAME 60A 12S
KV380P18*6.1/
X-601MN601-SKV170ALPHA 60A 12S V1.2P20*6/FLAME 60A 12S
KV320ALPHA 60A 6S/
X-605MN605-SKV170ALPHA 60A 12S V1.2P22*6.6/FLAME 60A 12S
KV320ALPHA 60A 6S/
X-U8Ⅱ
X-U8 Lite		U8Ⅱ
U8 Lite		KV85ALPHA 60A 12S V1.2G28*9.2/FLAME 60A 12S
KV100/
KV150ALPHA 60A 6S/
KV190/
X-70130mm/35mm
(30mm=35mm+
adapter)		MN701-SKV135ALPHA 80A 12S
Round		P24*7.2
-10mmHole		G24*7.8/
X-705MN705-SKV125ALPHA 80A 12S
Round		G26*8.5//
* NOTE : order qty should be an EVEN number.
