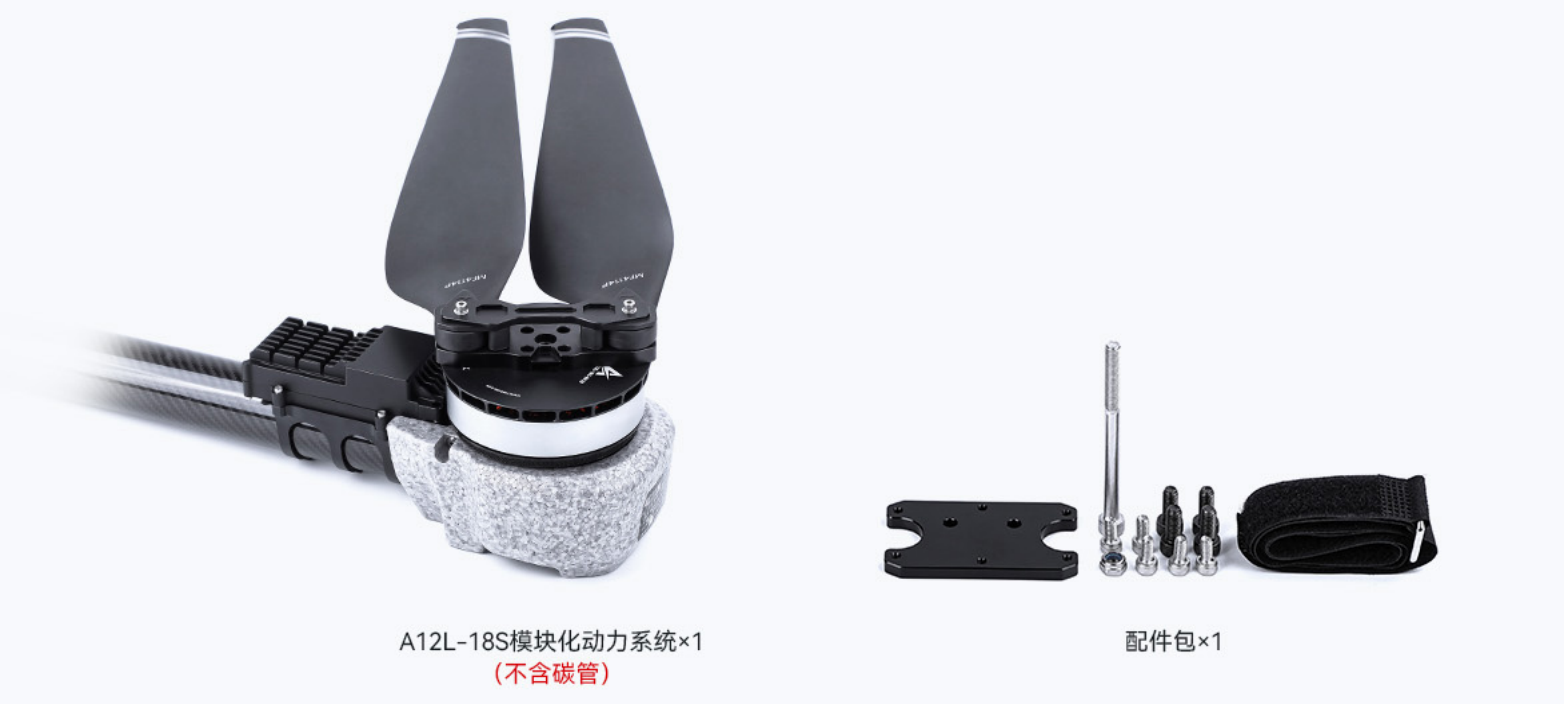

A12L-18S
电机/MOTOR
18S FOC 150A
电调/ESC
MF4315P
桨叶/PROPELLER
A12L-18S
电机/MOTOR
MF4315P
桨叶/PROPELLER
18S FOC 150A
电调/ESC
A12L-18S 推荐方案
挂载容积
30L
四轴农业植保无人机
挂载容积
40L
六轴农业植保无人机
起飞重量
60~72kg
四轴多旋翼无人机
起飞重量
90~108kg
六轴多旋翼无人机
挂载容积
30L
四轴农业植保无人机
挂载容积
40L
六轴农业植保无人机
起飞重量
60~72kg
四轴多旋翼无人机
起飞重量
90~108kg
六轴多旋翼无人机
| Model No. | A12L KV70 | Tube size | 50mm |
| Setup | A12L-18S (Motor)+18S FOC 150A (ESC)+ MF4315P (Prop) | Wire material, wire gauge, color | Power wires：10#AWG red & black Signal wires: 5P Teflon |
| Recommended battery | 14~18S (LiPo) | Wire length | 1700±5mm |
| Rated thrust | 15~18kg | Weight | 2400g±2% (incl. Wires+prop) |
| Efficiency at rated thrust | 8.9g/W (17kg) | IP | IPX6 |
| Max. thrust | 36.7kg | Recommended ambient temperature | -30℃～50℃ |
| Motor specs. | |||
| Stator size | 111*18mm | KV | 70 |
| ESC specs. | |||
| Throttle range | 1100~1940us | Max. voltage | 76V |
| Protocol | DRONE CAN、UAV CAN、CUBE CAN | Peak current (for a short time) | 150A (Open environment and temperature≤60℃) |
| Control method | PWM/CAN | BEC | NO |
| Prop specs | |||
| Model No. | MF4315P (Polymer Folding) | Length | 43 inch (1090.7mm) |

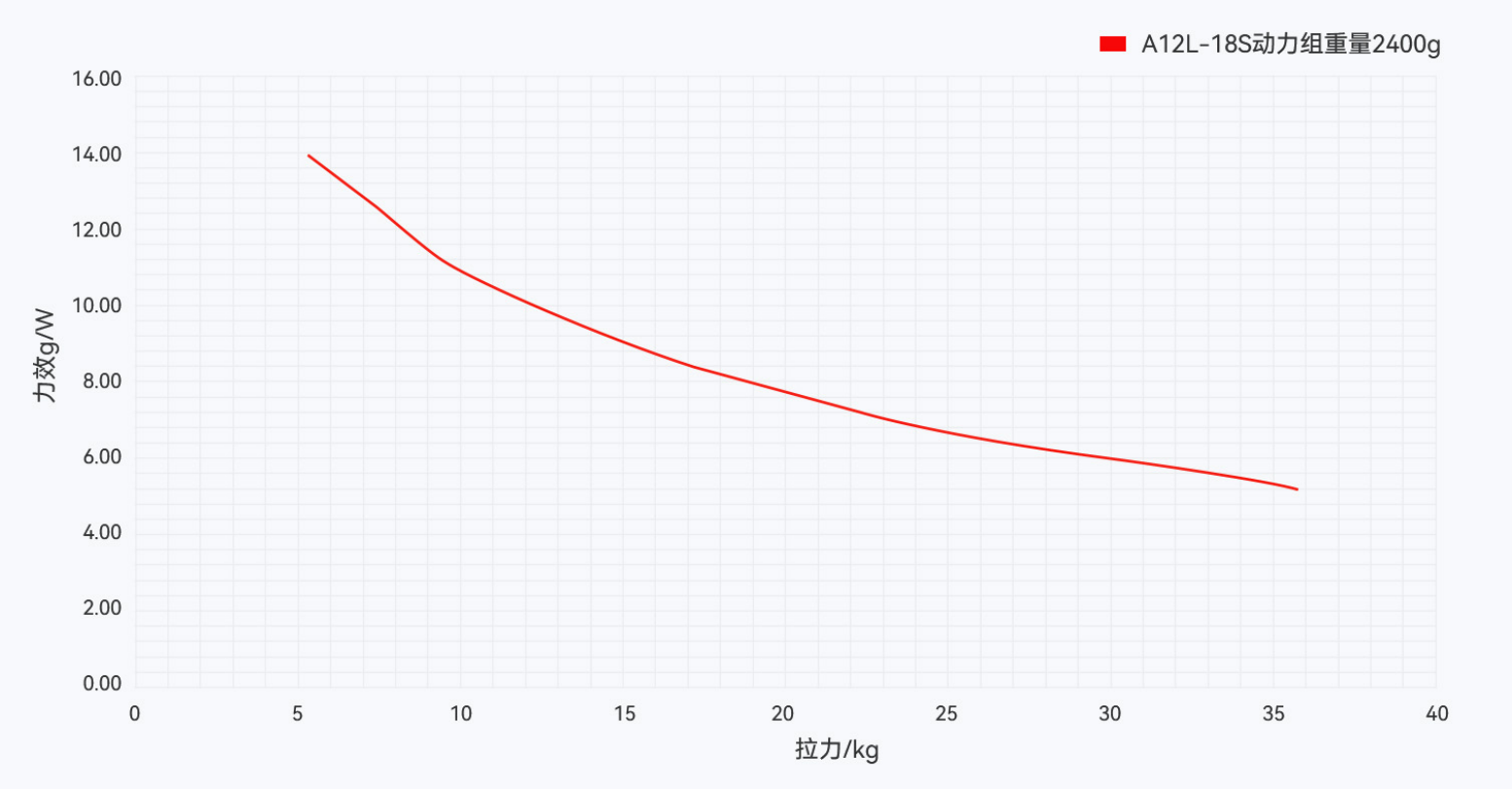

| Type | Voltage (V) | Throttle (%) | Current (A) | Thrust (g) | Motor efficiency (%) | Overall efficiency (gf/W) | Operating temperature (℃) | |
| A12L KV70 + 18S FOC 150A + MF4315P | 60.28 | 30 | 5.61 | 4918 | 84.5 | 14.5 | 165 (Ambient temperature: 34.2℃) | |
| 60.22 | 35 | 8.78 | 6953 | 90.2 | 13.2 | |||
| 60.30 | 40 | 13.13 | 9294 | 90.0 | 11.7 | |||
| 60.03 | 45 | 18.52 | 11885 | 93.3 | 10.7 | |||
| 60.20 | 50 | 24.91 | 14549 | 93.0 | 9.7 | |||
| 59.97 | 55 | 32.47 | 17349 | 92.6 | 8.9 | |||
| 59.82 | 60 | 40.76 | 20176 | 93.5 | 8.3 | |||
| 59.71 | 65 | 50.01 | 23024 | 93.3 | 7.7 | |||
| 59.56 | 70 | 60.13 | 25920 | 93.3 | 7.2 | |||
| 59.48 | 75 | 71.30 | 28799 | 92.0 | 6.8 | |||
| 59.37 | 80 | 83.05 | 31568 | 91.7 | 6.4 | |||
| 59.36 | 85 | 95.99 | 34362 | 89.5 | 6.0 | |||
| 59.20 | 90 | 107.21 | 36586 | 88.4 | 5.8 | |||
| 58.99 | 95 | 108.28 | 36797 | 89.0 | 5.8 | |||
| 59.07 | 100 | 108.76 | 36726 | 88.5 | 5.7 | |||
| Note: Temperature in the chart is the stator temperature after running @80% throttle for 3mins. (Data above based on benchtest at LIGPOWER lab are for reference only.) | ||||||||
| Type | Voltage (V) | Throttle (%) | Current (A) | Thrust (g) | Motor efficiency (%) | Overall efficiency (gf/W) | Operating temperature (℃) | |
| A12L KV70 + 18S FOC 150A + MF4315P | 75.63 | 30 | 4.31 | 4916 | 85.6 | 15.1 | 162 (Ambient temperature: 34.2) | |
| 75.64 | 35 | 6.98 | 6959 | 87.7 | 13.2 | |||
| 75.42 | 40 | 10.53 | 9233 | 90.6 | 11.6 | |||
| 75.46 | 45 | 14.84 | 11817 | 90.9 | 10.6 | |||
| 75.40 | 50 | 19.90 | 14461 | 93.2 | 9.6 | |||
| 75.37 | 55 | 25.91 | 17349 | 93.2 | 8.9 | |||
| 75.25 | 60 | 32.57 | 20176 | 92.6 | 8.2 | |||
| 75.30 | 65 | 40.09 | 23018 | 91.6 | 7.6 | |||
| 75.09 | 70 | 48.42 | 26026 | 90.5 | 7.2 | |||
| 74.90 | 75 | 57.05 | 28837 | 91.1 | 6.7 | |||
| 74.79 | 80 | 66.81 | 31741 | 89.9 | 6.4 | |||
| 74.63 | 85 | 77.13 | 34597 | 88.6 | 6.0 | |||
| 74.65 | 90 | 85.49 | 36622 | 87.2 | 5.7 | |||
| 74.63 | 95 | 86.17 | 36655 | 88.1 | 5.7 | |||
| 74.64 | 100 | 87.18 | 36791 | 87.3 | 5.7 | |||
| Note: Temperature in the chart is the stator temperature after running @80% throttle for 3mins. (Data above based on benchtest at LIGPOWER lab are for reference only.) | ||||||||
