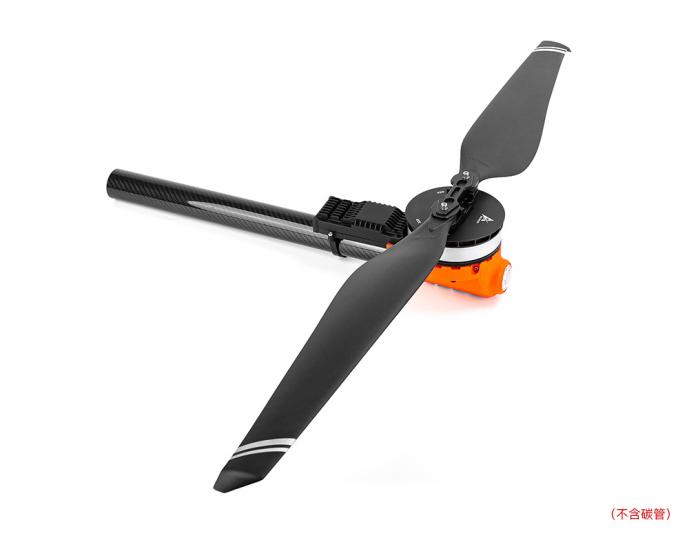

- Excl. carbon tube
Color：
  • Grey
  • Orange
Quantity：

0.00

Free Shipping by DHL/UPS Express

  • Detail information
  • Specifications
  • Download
A10
A10

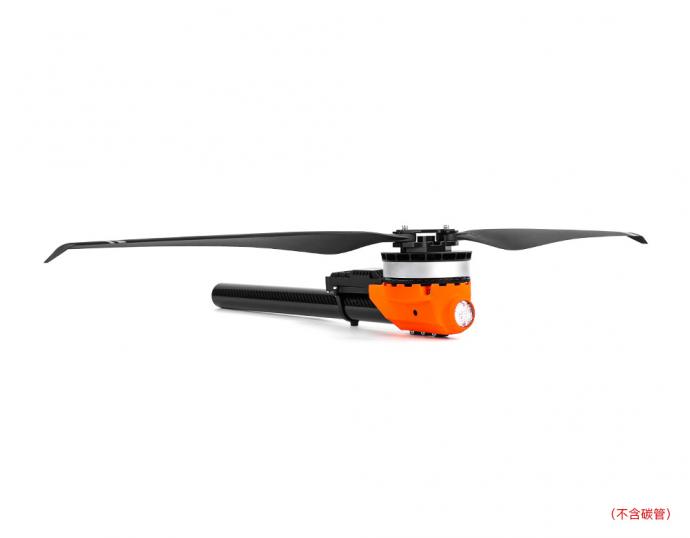

MODULARPROPULSION SYSTEM
The preferred solution for 16L and 25L agricultural drones

A10

MOTOR

14S FOC 100A

ESC

MF3424P

PROPELLER

A10 RECOMMENDATIONS

Load capacity(liquid)

16L

Agriculture Quadcopter Drone

Load capacity(liquid)

25L

Agriculture Hexacopter Drone

Take-off weight

28~44kg

Quadcopter

Take-off weight

42~66kg

Hexacopter

Load capacity(liquid)

16L

Agriculture Quadcopter
Drone

Load capacity(liquid)

25L

Agriculture Hexacopter
Drone

Take-off weight

28~44kg

Quadcopter

Take-off weight

42~66kg

Hexacopter

A系列单品A系列单品A系列单品A系列单品

Silicone
protective cover
with two colors
optional

Silicone protective cover with two colors optional

Fluorescent
Orange

Industrial
Gray

Technical Drawing


Specification
Model No.A10 KV120Tube size40mm
SetupA10 (Motor)+14S FOC 100A (ESC)+ MF3424P (Prop)Wire material,wire gauge, colorPower wires：12#AWG red & black
Signal wires: 5P Teflon
Recommended battery12~14S (LiPo)Wire length1230±5mm
Rated thrust7~11kgWeight1520g±2% (incl. Wires+prop)
Efficiency at rated thrust7.6g/W (11kg)IPIPX6
Max. thrust22kgRecommended ambient temperature-30℃～50℃
Motor specs.
Stator size99*15mmKV120
ESC specs.
Throttle range1100~1940us (fixed)Max. voltage61V
ProtocolDRONE CAN、 UAV CAN、 CUBE CANPeak current(for a short time)100A
(Open environment
and temperature≤60℃)
Control methodPWM/CANBECNO
Prop specs
Model No.MF3424P (Polymer Folding)Length34 inch (874mm)
Test Data
TypeVoltage
(V)		Throttle
(%)		Current
(A)		Thrust
(g)		Motor
efficiency
(%)		Overall
efficiency
(gf/W)		Operating
temperature
(℃)
A10 KV120
+
14S FOC 100A
+
MF3424P		46.35303.1321387614.7135
(Ambient temperature:
27.8)
46.49355.6433268012.7
46.47409.1747118211.1
46.404513.966314829.8
46.285020.718305838.7
46.165528.8510350827.8
46.066039.0912582817.0
45.916551.2814959806.4
45.717065.1617255785.8
45.527580.5919433775.3
45.338098.7421739744.9
45.338598.5221632744.8
45.339098.3921521744.8
45.329598.2821497744.8
45.3210098.1721443734.8
Note: Temperature in the chart is the stator temperature after running @80% throttle for 3mins.
(Data above based on benchtest at LIGPOWER lab are for reference only.)
A10 KV120
+
14S FOC 100A
+
MF3424P		60.21302.3620517814.4112
(Ambient temperature:
27.8)
60.32354.2932218112.5
60.30406.9845998310.9
60.234510.666244839.7
60.185015.608146838.7
60.095522.0410266837.8
60.006029.6212481827.0
59.896538.5614783816.4
59.737049.4217279805.9
59.577561.1519582785.4
59.418074.2621923765.0
59.398574.1621782765.0
59.409073.7521635764.9
59.399573.6521566764.9
59.4110073.5421535754.9
Note: Temperature in the chart is the stator temperature after running @80% throttle for 3mins.
(Data above based on benchtest at LIGPOWER lab are for reference only.)

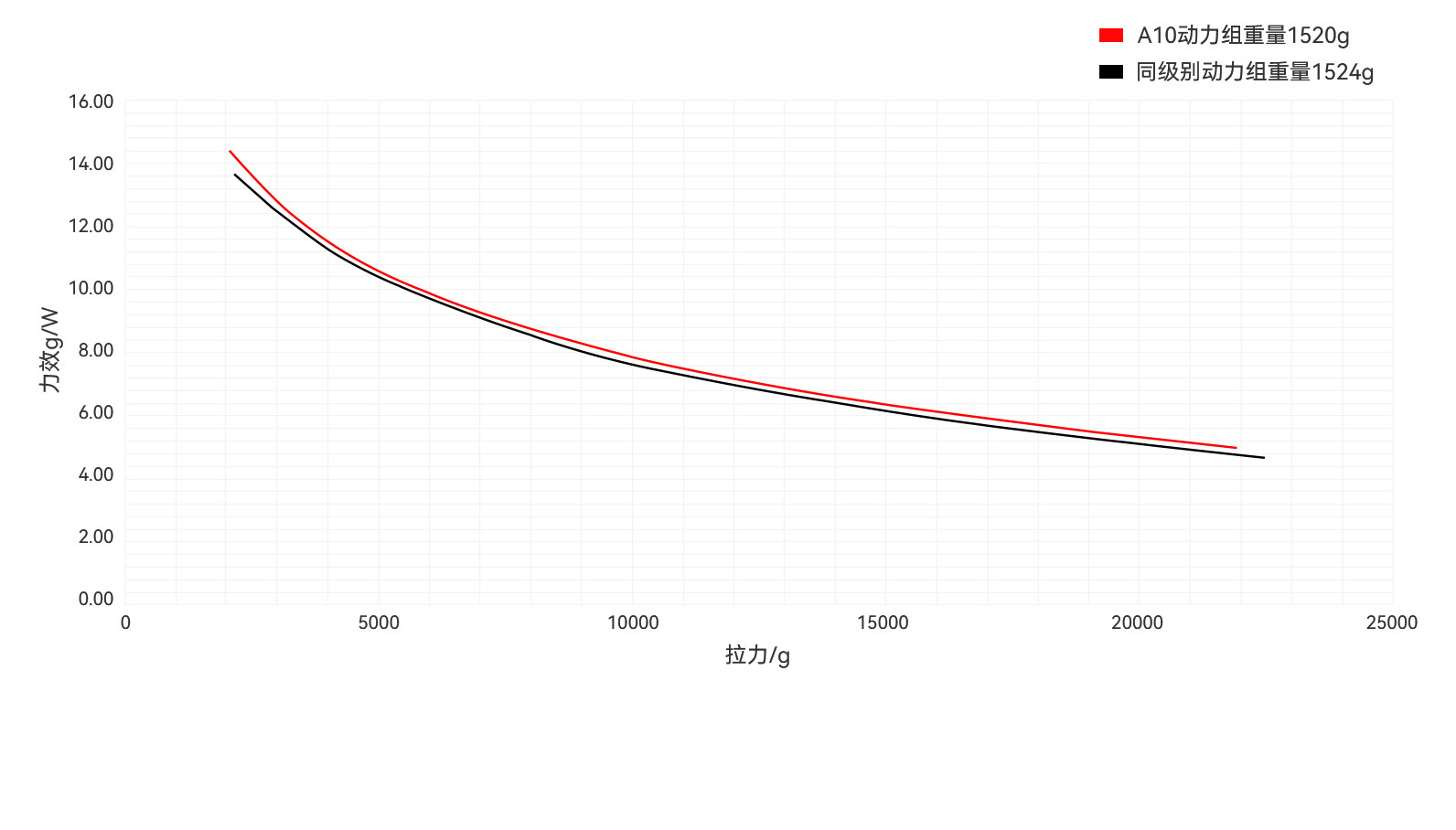

Analysis Chart

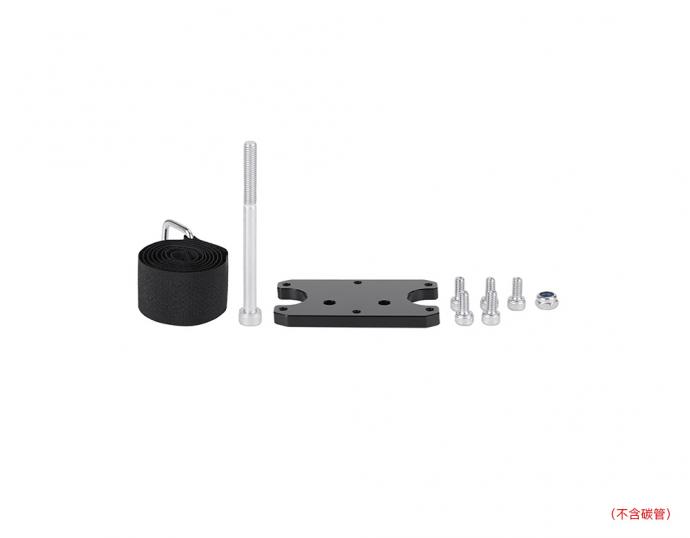

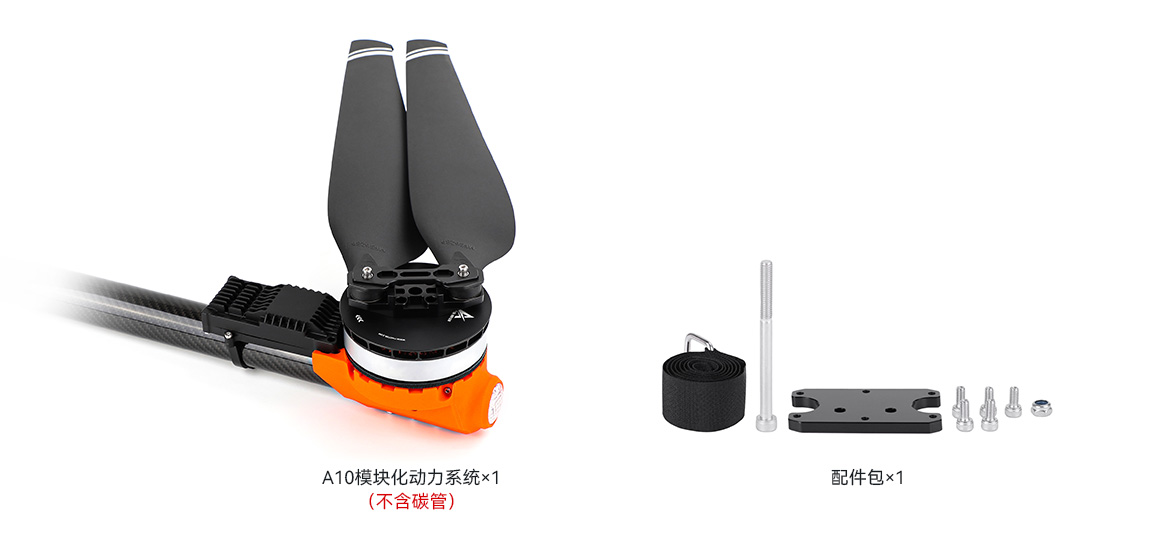

Packing List


Before using this product, please check if all the items listed above are included in the packaging. If there are any missing items, please contact our online customer service or leave message to " onlinesales@ligpower.com " in time.
